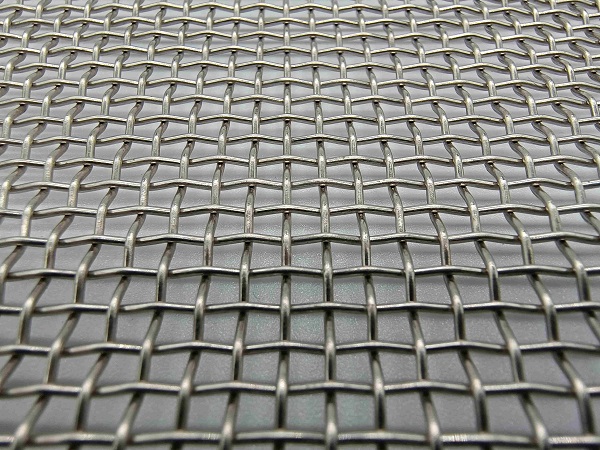

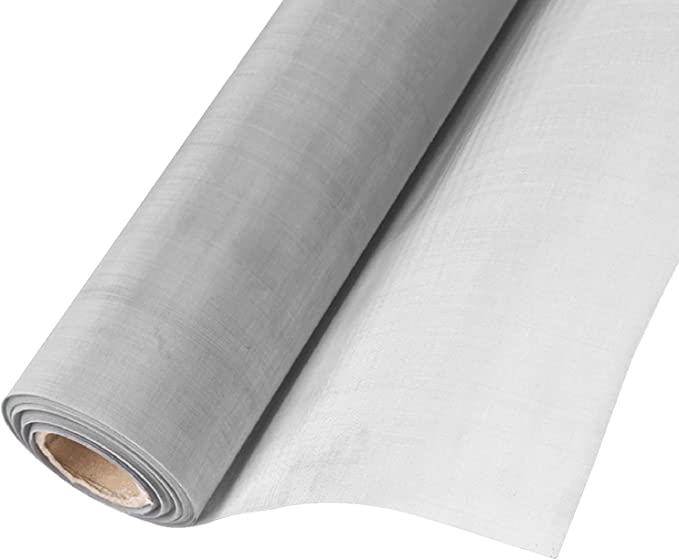

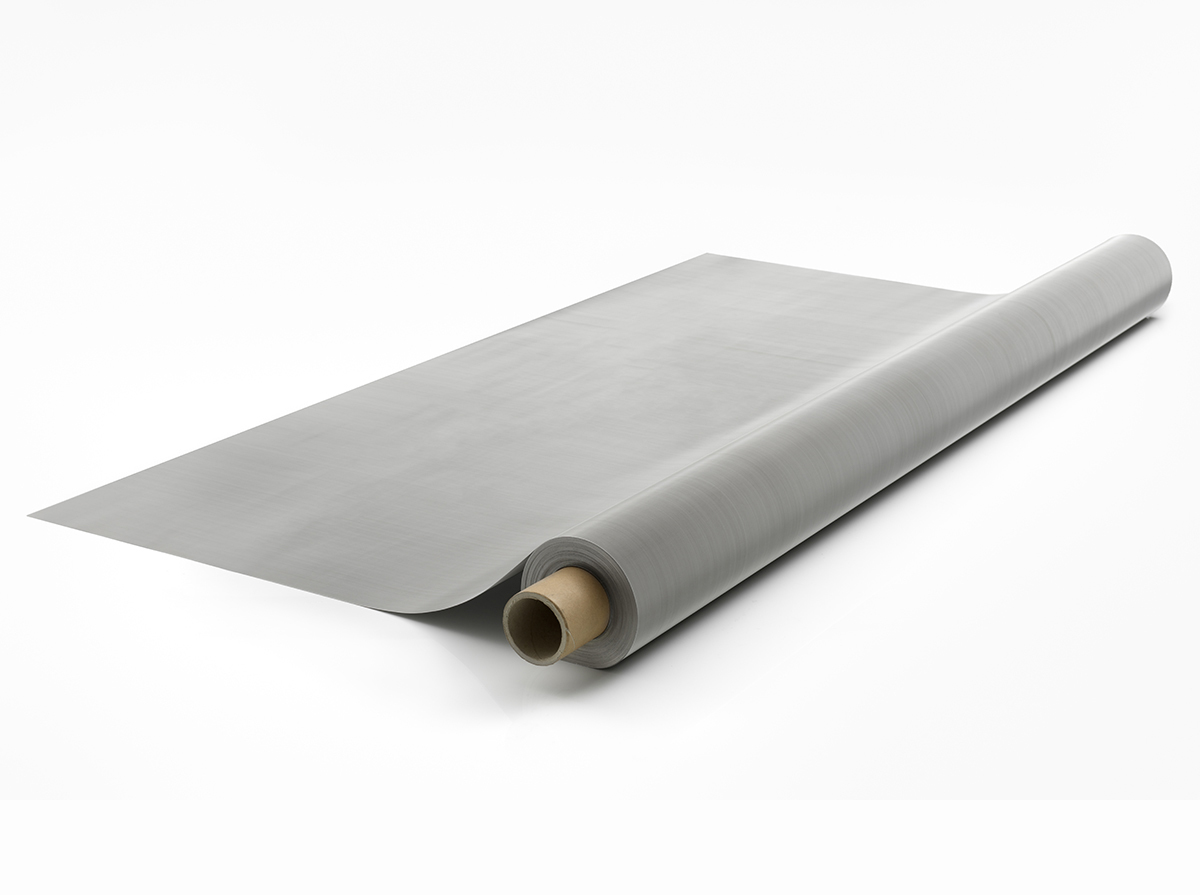

Inconel 600 Wire Mesh - Various strainer mesh available in Rolls and Panels

Specification

Material: Alloy 600 Wire

Type: Industrial Woven Wire Mesh

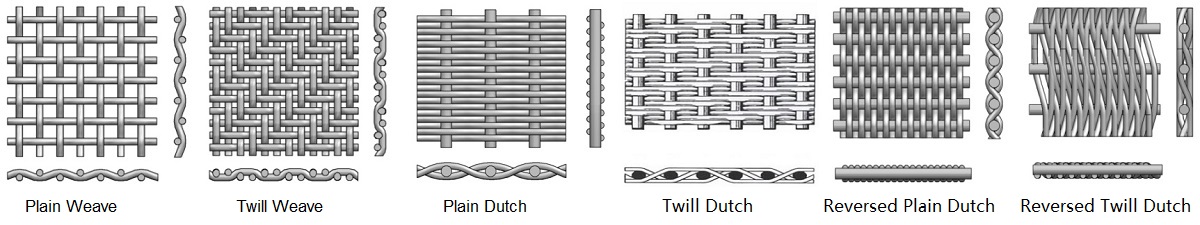

Weave Pattern: Plain Weave, Twill Weave, Dutch Weave, Crimped Weave, etc.

Mesh Count: 0.5 to 1400

Wire Diameter: 0.04mm to 10mm

Width: up to 2000MM ( 2M / 6.56 feet / 78.74inch)

Length: 30M and other custom length.

GET A QUOTE

Introduction

Inconel Wire Mesh: A Detailed Overview



In the world of modern engineering materials, Inconel wire mesh is well regarded for its unique features and multiple uses.

Inconel is a superalloy family with a nickel and chromium composition and is known for its high resistance to heat, corrosion, and oxidation.

These features make Inconel mesh essential for applications with extreme conditions where conventional materials cannot be used.

Depending on the grade, Inconel alloys have nickel and chromium as their main elements, with iron, molybdenum, niobium, and aluminum in varying proportions. Combining these elements results in high strength and high resistance to thermal and chemical deterioration.



Some of the more remarkable Inconel wire mesh include Alloy 600, 601, and 625:



Inconel 600 wire mesh: This alloy is noted for great resistance to oxidation, as well as corrosion during elevated temperatures. It also has great mechanical properties at both high and low temperatures.

Inconel 601 wire mesh: Known for extreme spalling resistance and high-temperature stability, Inconel 601 guarantees superior oxidation resistance at temperatures of up to 2200F.

Inconel 625 wire mesh: This variant is distinguished by its outstanding fatigue, thermal fatigue strength, oxidation resistance, and weldability.



Spotlight on Inconel 600 Wire Mesh: The Gold Standard for Oxidation Resistance & Thermal Stability

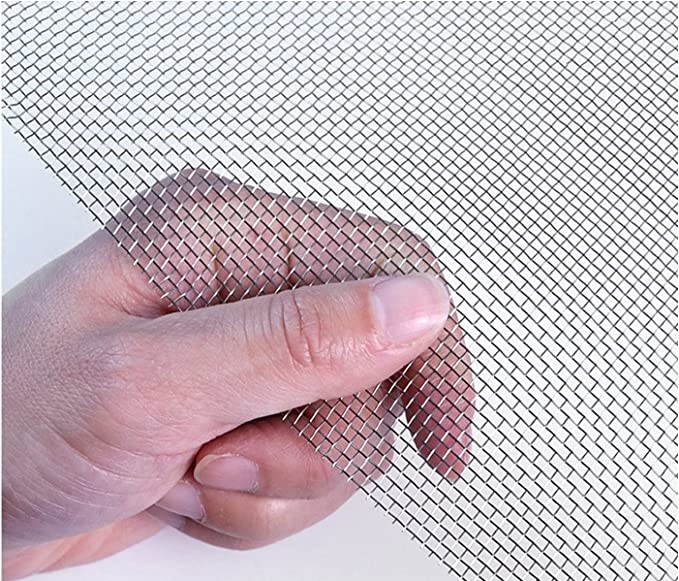

Nickel Alloy 600 wire mesh, also known by its brand name Inconel ® 600 wire mesh or UNS N06600 wire mesh is made of a unique nickel-chromium alloy wire that is famous for its oxidation resistance at higher temperatures.






Inconel 600 wire mesh is highly versatile and can be used in everything from cryogenics to applications that present elevated temperatures up to 2000°F (1093°C).

Its high nickel content, combined with its chromium content, provides users of Alloy 600 wire mesh a number of benefits including good oxidation resistance at high temperatures, corrosion resistance to both organic and inorganic compounds, and resistance to chloride-ion stress corrosion cracking. Inconel 600 wire mesh works well with most alkaline solutions and sulfur compounds.
Because of its versatility, and because it is the standard engineering material for applications that require resistance to corrosion and heat, a number of different critical industries use Alloy 600 wire mesh / Inconel 600 wire mesh in their applications.



EQUIVALENT STANDARDS

INDUSTEEL TRADEMARKS

UNS

ASTM

EURONORMS EN

SUS

CODE

N06600

N06600

EN 2.4816



Chemical Composition of Alloy 600 / Inconel 600 Woven Wire Cloth



C

Mn

S

Si

Ni

Cr

Fe

.10Max

1.0 Max

.015 Max

.50 Max

72.0 Min

14.0-17.0

6.0-10.0



Physical Properties of  Alloy 600 / Inconel 600



Physical Properties

°F

British Units

°C

Metric Units

Density

Room

0.304 lb./cubic in.

Room

8.43g/cubic cm

Electrical Resistivity

70

40.6 microohm-in.

21

1.03 microohm-m

200

40.9

93

1.04

400

41.5

204

1.05

600

42.2

316

1.07

800

43

427

1.09

Mean Coefficient of  Thermal Expansion

70-200

7.4 microinches/in.-°F

21-93

13.3 x 10(-6)m/m·K

70-400

7.7

21-204

13.9

70-600

7.9

21-316

14.2

70-800

8.1

21-427

14.6

Thermal Conductivity

70

103 Btn-in./ft².-hr.-°F

21

14.8 W/m·K

200

109

93

15.7

400

121

204

17.4

600

133

316

19.2

800

145

427

20.9

Modulus of Elasticity

Room

30.0 x 10(6) psi

Room

207 GPa



Specification List of Inconel Wire Mesh including plain weaving, twill weave, and Dutch woven wire mesh



Mesh Count

/Inch

Wire Diameter

Aperture

Open Area

%

Weight (LB)

/100 Square Foot

Inch

MM

Inch

MM

1 × 1

.080

2.03

.920

23.37

84.6

41.1

2 × 2

.063

1.60

.437

11.10

76.4

51.2

3 × 3

.054

1.37

.279

7.09

70.1

56.7

4 × 4

.063

1.60

.187

4.75

56.0

104.8

4 × 4

.047

1.19

.203

5.16

65.9

57.6

5 × 5

.041

1.04

.159

4.04

63.2

54.9

6 × 6

.035

.89

.132

3.35

62.7

48.1

8 × 8

.028

.71

.097

2.46

60.2

41.1

10 × 10

.025

.64

.075

1.91

56.3

41.2

10 × 10

.020

.51

.080

2.03

64.0

26.1

12 × 12

.023

.584

.060

1.52

51.8

42.2

12 × 12

.020

.508

.063

1.60

57.2

31.6

14 × 14

.023

.584

.048

1.22

45.2

49.8

14 × 14

.020

.508

.051

1.30

51.0

37.2

16 × 16

.018

.457

.0445

1.13

50.7

34.5

18 × 18

.017

.432

.0386

.98

48.3

34.8

20 × 20

.020

.508

.0300

.76

36.0

55.2

20 × 20

.016

.406

.0340

.86

46.2

34.4

24 × 24

.014

.356

.0277

.70

44.2

31.8

30 × 30

.013

.330

.0203

.52

37.1

34.8

30 × 30

.012

.305

.0213

.54

40.8

29.4

30 × 30

.009

.229

.0243

.62

53.1

16.1

35 × 35

.011

.279

.0176

.45

37.9

29.0

40 × 40

.010

.254

.0150

.38

36.0

27.6

50 × 50

.009

.229

.0110

.28

30.3

28.4

50 × 50

.008

.203

.0120

.31

36.0

22.1

60 × 60

.0075

.191

.0092

.23

30.5

23.7

60 × 60

.007

.178

.0097

.25

33.9

20.4

70 × 70

.0065

.165

.0078

.20

29.8

20.8

80 × 80

.0065

.165

.0060

.15

23.0

23.2

80 × 80

.0055

.140

.0070

.18

31.4

16.9

80 × 80

.0047

.119

.0078

.198

39

11.39

90 × 90

.005

.127

.0061

.16

30.1

15.8

100 × 100

.0045

.114

.0055

.14

30.3

14.2

100 × 100

.004

.102

.0060

.15

36.0

11.0

100 × 100

.0035

.089

.0065

.17

42.3

8.3

110 × 110

.0040

.1016

.0051

.1295

30.7

12.4

120 × 120

.0037

.0940

.0064

.1168

30.7

11.6

150 × 150

.0026

.0660

.0041

.1041

37.4

7.1

160 × 160

.0025

.0635

.0038

.0965

36.4

5.94

180 × 180

.0023

.0584

.0033

.0838

34.7

6.7

200 × 200

.0021

.0533

.0029

.0737

33.6

6.2



Plain Dutch Woven Inconel Wire Mesh



Mesh Count

Wire Diameter

 (In.)

Absolute Filter Rating

(μm)

Nominal Filer Rating

(μm)

8 x 85

.014 x .0126

318-340

250-255

12 x 64

.024 x .0165

270-285

200-205

14 x 88

.020 x .013

225-245

150-155

20 x 150

.0098 x .007

155-165

100-105

24 x 100

.015 x .010

115-125

80-85

30 x 150

.009 x .007

95-100

65-70

40 x 200

.007 x .0055

65-70

55-60



Twill Dutch Woven Inconel Wire Cloth



Mesh Count

Wire Diameter

(In.)

Absolute Filter Rating

 (μm)

Nominal Filter Rating

 (μm)

20 x 250

.0098 x .0079

110-120

98-105

30 x 360

.0098 x .0060

90-100

80-84

40 x 560

.0070 x .0040

70-75

47-52

120 x 400

.0040 x .0025

50-55

37-43

120 x 160

.0040 x .0025

40-45

28-32

80 x 700

.0040 x .0030

35-40

24-26

200 x 600

.0024 x .0018

28-32

19-21

165 x 800

.0028 x .0020

24-26

14-16

165 x 1400

.0028 x .0016

16-18

9-11

200 x 1400

.0028 x .0016

12-14

5-6



Key Properties of Inconel Wire Mesh



1. High Temperature Tolerance

Inconel wire mesh is perfectly suitable for operations that exceed 1000 degrees because of its tolerable mechanical degradation.

2. Non-Corrosive

In addition, the Inconel wire mesh is ideal for chemical and marine industries as it remained resistant to oxidation, salts, acids, and even waters that are super saturated.

3. Increased Mechanical Strength

Inconel can with stand extreme stress and pressure and still maintain its structural integrity making it more reliable for super-challenging challenging industrial apparatuses.

4. Customizable Weaving Patterns

Inconel wire mesh comes in a variety of options such as plain, twill, and Dutch weaves, which can be customized to meet certain filtration and structural requirements.

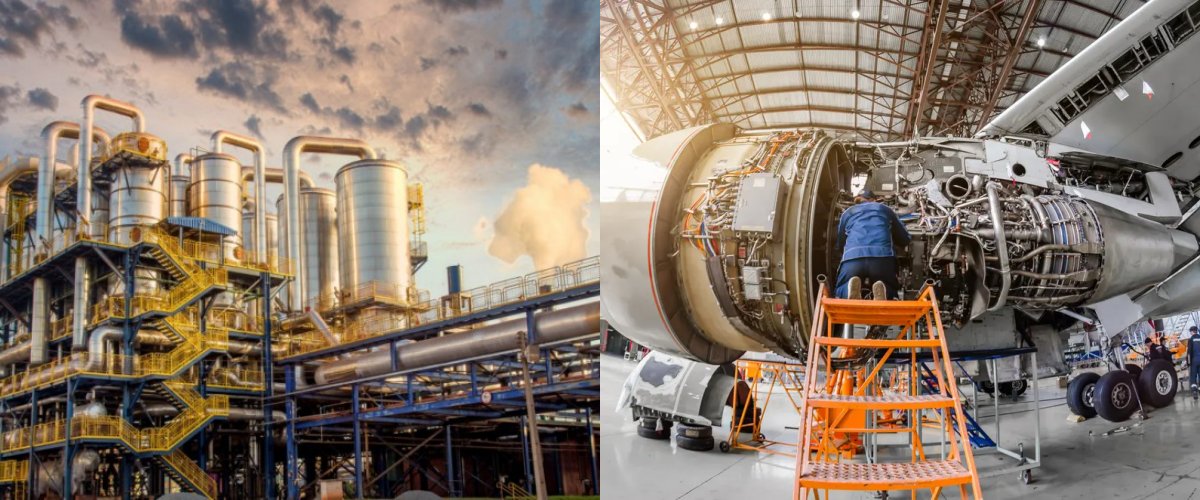

Specialized Applications of Inconel Wire Mesh



Inconel wire meshes are used to various fields and industries, which makes them very advantageous.

► Aerospace:

Used in some gas turbine parts, jet engines, and the like because of their resistance to overheating and highly corrosive environments.

► Chemical Processing:

Great for rest use in heat exchangers, pressure valves, and other pieces of equipment that are constantly exposed to totally harsh chemicals.

► Heat Treatment:

Suitable for use in making trays, baskets, and fixtures for heat treatment plants because of their high strength and resistance to oxidation and incredibly hot environments.

► Nuclear Industry:

Found in equipment associated with nuclear steam generators because of excellent mechanical properties, high oxidation resistance, and the like.

► Oil and Gas Extraction:

In the extraction of oil and gas, Inconel wire mesh has no equal when it comes to extreme heat, pressure, and corrosion resistance. They serve quality filtration, sand control, and catalyst support systems by separating solids from fluids. The high strength and oxidation resistance of Inconel wire mesh ensures safety in downhole operations, pipeline protection, and offshore drilling activities. With a longer life in the presence of acids or high-sulfur environments, the material optimizes safety and efficiency in these tough extraction processes.



Metart Building Tech: One of the Leading Manufacturers of Inconel Wire Mesh



Being one of the top suppliers, Metart Building Tech has positioned itself as a dependable supplier for various sectors that require high-quality Inconel wire mesh. We stand out in the industry because of our ability to manufacture Alloy 600 (Inconel 600) Wire Mesh and wire cloth with various mesh counts and wire diameters either in rolls or cut-to-size panels. To meet with special needs, we offer custom fabrication including laser cutting it to regular discs, rings, or exotic shapes.



What Makes Us the Best?



• Precision Engineering:

Metart Building Tech ensures customer satisfaction by using advanced weaving technologies, which improve accuracy and durability.

• Custom Solutions:

Tailored to the client’s specific needs, these products can be manufactured in different mesh sizes, wire diameters, and weaving styles.

• High Standards:

We make sure to achieve the highest level of quality and performance because all of our products are manufactured with maximum reliability in mind.

• Industry Expertise:

Multiple years of working experience in developing solutions for the aerospace, chemical, and marine industries.



Conclusion



Inconel wire mesh is one of the most reliable materials to use in extreme environments that would destroy other materials. Because it soars in areas of strength, corrosion, and heat, it is the go-to choice for many industries globally.

Metart Building Tech is a reputable manufacturer and exporter of premium Inconel 600 wire mesh products for the most competitive industrial applications.

Application

GET A QUOTE

Inconel Wire Mesh – The Ultimate Solution for Industries

Overview

Known widely in the engineering sector, Inconel wire mesh shows excellent strength, resistance to oxidation, corrosion and even extreme foehn winds. It is used for aerospace, marine, chemical processing and power generation industries, allowing for efficacy and reliability in the most ghastly conditions. This article focuses on issues, purposes, and pros of Inconel wire mesh, while also stating Metart Building Tech as one of the leading suppliers of the product.

What is Inconel Wire Mesh

Inconel is designed nickel-chromium based superalloy that best operates in extreme conditions. Compared to other materials, Inconel wire mesh provides superior capabilities it does not get stressed or corroded and oxidation becomes several times easier. It is a requisite for sectors that require great filtering, structural soundness and durability.

Inconel Wire Mesh's crucial attributes.

1. High Temperature Sustainability to Function

It is able to withstand greater than 1000 degree celcius without fainting making it ideal for industrial and high heat purposes.

2. Corrosion Resistance of the Greatest Level

Incredibly resistant to oxidation, acidic environments, and chemicals in seawater making it extremely favourable in marine and chemical arenas.

3. Greater Toughness and Sturdiness

Extracts from the surface microclimate have been presented as markers which help indicate the stresses and temperatures under which crystals interact.

4. Flexible Weaving Patterns

These patterns can be supplied in basic, twill or Dutch style weaves to suit particular industrial needs.

Applications of Inconel Wire Mesh In The Industry

1. Aerospace Industry

Jet engines, turbines, exhaust parts and heat shields must withstand tremendous thermal stresses, which make this material essential.

2. Chemical Processing

Used for filtering, supporting catalysts, and heat exchangers in strong corrosive environments.

3. Marine and Offshore Operations

It has excellent resistance to saltwater which is useful in oil rigs, desalination stations, and other underwater constructions.

4. Power Generation

High performance Inconel 625 is widely used in nuclear reactors and steam generators, where high operational temperatures are normal.

5. Automotive And Gas Turbines

Inconel parts can be used in manifolds turbocharger turbines and other highly stressed and heated mobile components.

Why Metart Building Tech is the Best For Inconel Wire Mesh?

Metart Building Tech is one of the best manufacturers of Inconel wire mesh of any type, for practically any industry. Their Inconel wire mesh products made with Nickel Alloy 600 (Inconel 600) Wire Mesh is specially manufactured with great care and accuracy which makes them stand out from the rest of the market.

Benefits of Metart Building Tech’s Inconel Wire Mesh

Metart Being the Industry Leader, the weave patterns on their Inconel wire mesh products do not suffer from loosening or wearing off due to the use of more advanced weaving machinery.

• Custom Fabrication - Different sizes of the mesh, wire diameters, and weaving styles are available as per the needs of the application.

• Strict Quality Assurance - Compliance with international standards ensures superior performance and reliability.

• Industry Expertise – Many years of experience delivering specialized solutions for critical industries.

Conclusion

Inconel wire mesh is ideal for industries that need materials that can withstand very high temperatures, heat, and pressure. For extreme industrial applications where durability, heat resistance, and corrosion protection are of utmost importance, this is the most dependable option.

Metart Building Tech, as a manufacturer, provides the industry with the best Inconel 600 wire mesh that goes beyond set standards.

Check out Metart Building Tech’s collection of nickel alloy 600 wire mesh and find the perfect solution for your industrial application.
