UNS.S31803-Duplex 2205 Stainless Wire Mesh

Specification

Material: Duplex 2205 Stainless Steel Wires

Type: Industrial Special Alloy Wire Mesh

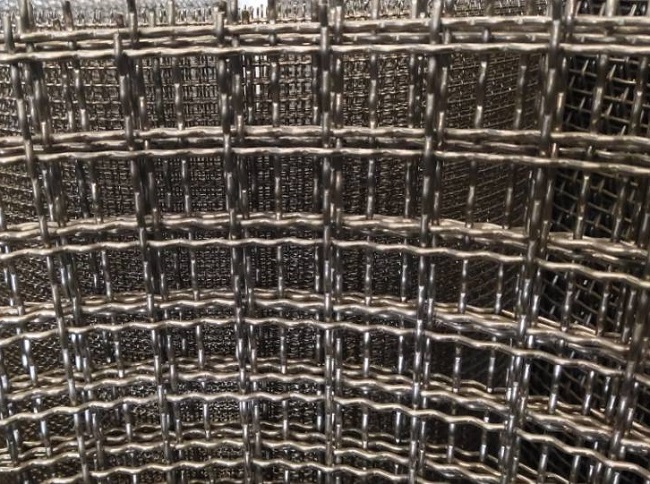

Weave Pattern: Plain Weave, Twill Weave, Dutch Weave, Crimped Weave, etc.

Mesh Count: Custom made.

Wire Diameter: Custom made.

Width: Custom made

Length: 30M and other custom length.

GET A QUOTE

Introduction

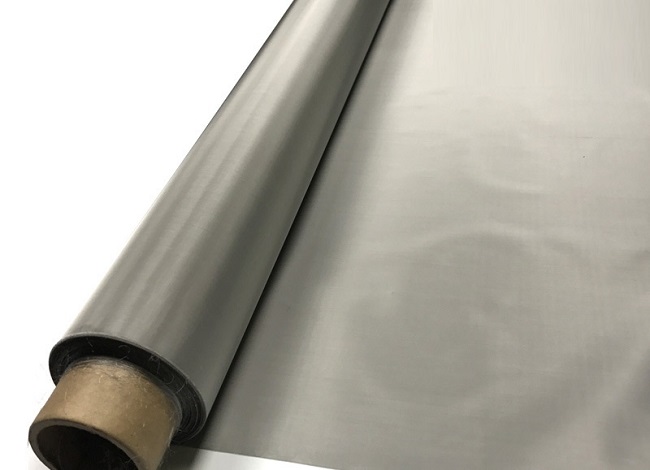

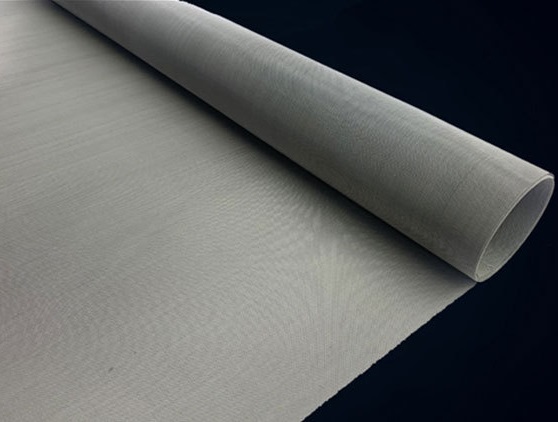

UNS S31803 wire mesh is also known as Duplex stainless 2205 wire mesh and W.Nr 1.4462 wire mesh, which is made of a duplex grade stainless steel wire with a ferritic-austenitic microstructure.
This duplex microstructure ensures that stainless steel 2205 / UNS S31803 is much more resistant to crevice corrosion, chloride pitting and stress corrosion cracking as compared to SS304, SS316L and 317L, due to its high chromium and molybdenum content.
This alloy consists of around 40%-50% ferrite in the annealed condition, which ensures the material a high strength whilst retaining the corrosion resistance of the austenitic grades, hence the 'duplex' description.
This alloy has outstanding corrosion resistance to seawater and most concentrations of sulphuric acid. In addition, it is also resistant to sulphide stress corrosion cracking.
As a cost-effective duplex stainless steel wire mesh, UNS S31803/2205 stainless steel mesh is used for a wide range of applications.

Features of UNS.31803 Stainless Steel Wire Mesh

-High resistance to chloride stress corrosion cracking
-Resistance to chloride pitting and crevice corrosion
-Good general corrosion resistance
-Good sulfide stress corrosion resistance
-High Strength
-Good weldability and workability

EQUIVALENT STANDARDS
INDUSTEEL TRADEMARKS	UNS	UNS	EURONORMS EN	SUS
…	S31803	S32205	1.4462 X2CrNiMoN22-5-3	SUS 329J3L

Chemical Properties of Duplex 2205 Wire Mesh:

	C	Mn	Si	P	S	Cr	Mo	Ni	N
2205 (S31803)	0.03	2	1	0.03	0.02	min21.0	min2.5	min4.5	min0.08
2205 (S31803)	max	max	max	max	max	max23.0	max3.5	max6.5	max0.20
2205 (S32205)	0.03	2	1	0.03	0.02	min22.0	min3.0	min4.5	min0.14
2205 (S32205)	max	max	max	max	max	max23.0	max3.5	max6.5	max0.20

Mechanical Properties:

Grade	Tensile Strength ksi (min)	Yield Strength 0.2% ksi (min)	Elongation %	Hardness (HB) MAX
2205	90	65	25	217

Physical Properties:

Condition	Density lbm/in3	Electrical Resistivity mW•in	Thermal Conductivity (BTU/hr•ft•°F)	Heat Capacity BTU/lbm•°F	Electrical Resistivity (in x 10-6)
at 68°F	0.278	27.6	8.7	0.112	33.5
at 212°F		26.1	9.2	0.119	35.4
at 392°F		25.4	9.8	0.127	37.4
at 572°F		24.9	10.4	0.134	39.4

Specification List:

Mesh Count /Inch	Wire Diameter		Aperture		Open Area %	Weight (LB) /100 Square Foot
Mesh Count /Inch	Inch	MM	Inch	MM	Open Area %	Weight (LB) /100 Square Foot
1 × 1	.080	2.03	.920	23.37	84.6	41.1
2 × 2	.063	1.60	.437	11.10	76.4	51.2
3 × 3	.054	1.37	.279	7.09	70.1	56.7
4 × 4	.063	1.60	.187	4.75	56.0	104.8
4 × 4	.047	1.19	.203	5.16	65.9	57.6
5 × 5	.041	1.04	.159	4.04	63.2	54.9
6 × 6	.035	.89	.132	3.35	62.7	48.1
8 × 8	.028	.71	.097	2.46	60.2	41.1
10 × 10	.025	.64	.075	1.91	56.3	41.2
10 × 10	.020	.51	.080	2.03	64.0	26.1
12 × 12	.023	.584	.060	1.52	51.8	42.2
12 × 12	.020	.508	.063	1.60	57.2	31.6
14 × 14	.023	.584	.048	1.22	45.2	49.8
14 × 14	.020	.508	.051	1.30	51.0	37.2
16 × 16	.018	.457	.0445	1.13	50.7	34.5
18 × 18	.017	.432	.0386	.98	48.3	34.8
20 × 20	.020	.508	.0300	.76	36.0	55.2
20 × 20	.016	.406	.0340	.86	46.2	34.4
24 × 24	.014	.356	.0277	.70	44.2	31.8
30 × 30	.013	.330	.0203	.52	37.1	34.8
30 × 30	.012	.305	.0213	.54	40.8	29.4
30 × 30	.009	.229	.0243	.62	53.1	16.1
35 × 35	.011	.279	.0176	.45	37.9	29.0
40 × 40	.010	.254	.0150	.38	36.0	27.6
50 × 50	.009	.229	.0110	.28	30.3	28.4
50 × 50	.008	.203	.0120	.31	36.0	22.1
60 × 60	.0075	.191	.0092	.23	30.5	23.7
60 × 60	.007	.178	.0097	.25	33.9	20.4
70 × 70	.0065	.165	.0078	.20	29.8	20.8
80 × 80	.0065	.165	.0060	.15	23.0	23.2
80 × 80	.0055	.140	.0070	.18	31.4	16.9
80 × 80	.0047	.119	.0078	.198	39	11.39
90 × 90	.005	.127	.0061	.16	30.1	15.8
100 × 100	.0045	.114	.0055	.14	30.3	14.2
100 × 100	.004	.102	.0060	.15	36.0	11.0
100 × 100	.0035	.089	.0065	.17	42.3	8.3

Mesh Count/ Inch	Wire Diameter				Type of Weave
	Warp wire dia.		Weft wire dia.
	inch	mm	inch	mm
12x64	0.023	0.58	0.0165	0.42	Plain
14x88	0.019	0.48	0.012	0.30	Plain
14x110	0.016	0.40	0.011	0.28	Plain
24x110	0.014	0.355	0.010	0.25	Plain

Application

-Seawater systems, marine and other high chloride environments.
-Chemical process vessels, Chemical processing, transport and storage.
-Food process equipment
-Oil field piping, Oil and gas exploration and processing equipment.
-Chemical processing, transport and storage.
