Elevator Interior Architectural Metal Mesh
Pattern Code: METART-WW04C3115
Type of Mesh: Rigid Architectural Wire Mesh
Materials: SS304, SS316, SS201 and other alloys.
Opening Rate: 0%
Weight: Approx 9.5kg/Square Meter
Sheet Width: Up to 1.4M for Antique Brass Finish, up to 3M for mill finish
Sheet Width: Up to 3.5M for Antique Brass Finish
GET A QUOTE

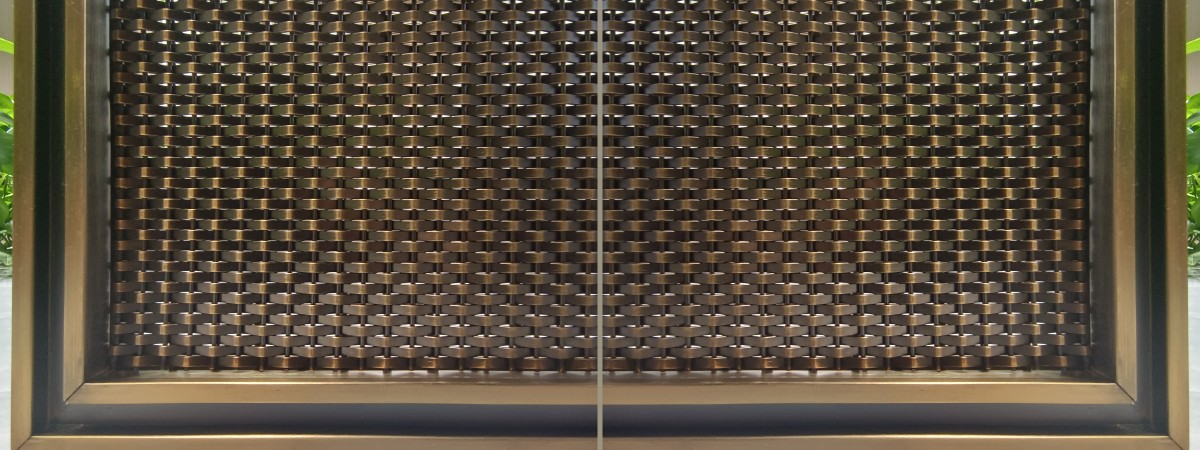

Solid Architectural Metal Mesh Panels are commonly used in elevator interior cladding projects, particularly those requiring a smooth, sheet-like appearance with no openings, creating a decorative metal surface.
METART-WW04C3115 is an opaque, decorative woven wire mesh panel designed primarily for interior cladding.

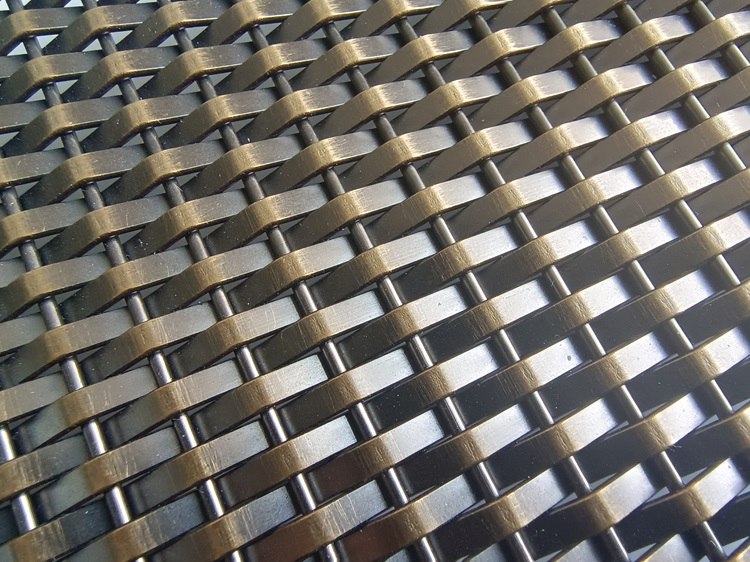

This product is crafted from tightly woven 3x1mm flat stainless steel wire strips and nominal 1.5mm straightened wire rods (with an actual measurement of 1.45mm). The mesh is woven in a typical way that both sides feature the same pattern, making it an excellent choice for commercial cladding applications, such as bespoke elevator interiors and lobby wall decorations.
Explanation of the Pattern Code:
"WW04C": Represents our woven wire 04 series, made with pre-crimped shaped wire.
"31": Denotes the flat metal strips' 3mm width and 1mm thickness.
"15": Refers to the nominal 1.5mm stainless steel wire rods, with an actual measurement of 1.45mm.
Specification Overview
|
Pattern Code |
METART-WW04C3115 |
|
Optional Materials |
SS304, SS316, SS201, Brass, Copper, Bronze, etc. |
|
Type of Mesh |
Rigid Architectural Metal Mesh |
|
Flat Metal Strip ( Width x Thickness) |
3x1mm |
|
Wire Rod Diameter |
Nominal 1.5mm (actual 1.45mm) |
|
Wire Rod Pitch |
7mm |
|
Opening Size |
0mm |
|
The overall thickness of the mesh |
3.4mm |
|
Opening Area |
0% |
|
Privacy Rate |
100% |
|
Weight: |
9.5kg/Square Meter |
|
Optional Finishes |
Mill Finish ( Original stainless steel finish）, Antique Copper plated finish, Antique Brass plated finish, PVD Titanium Plated-Gold / Rose Gold / Champagne gold / Grey / Black， PVDF Painted. |
