Specification

Pattern Code: METART-WW05-18186

Material: SS304 / SS316 / SS201, true copper, brass or Bronze, etc.

Type: Rigid Architectural Metal Wire Mesh Grilles

Opening Area: 40%

Weight: Approx 6.4kg/Square Meter

Finish: Mill Finish (other finishes available)

Screen Width: up to 4000MMx6000MM, mill finish

GET A QUOTE

Introduction

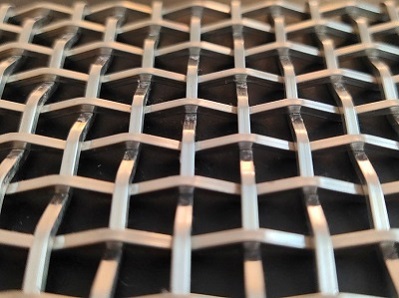

Architectural Wire Mesh METART-WW05-18186 - A Distinguished Architectural Decor Wire Mesh Made of Square Stainless Steel Rods

METART-WW05-18186 is a special architectural woven wire mesh that is made of both warp and weft stainless steel strips.

But unlike other WW05 family members, #18186 is made of square wires instead of flat wires.

The pattern number 18186 represents its specification which is made of 1.8x1.8mm square wires and a 6x6mm clear opening.

As the hole size is small, the wires will be obviously crimped during weaving.

So that this stainless steel fabric will gain clearer up and downs compared with other ww05 members and create a 3D look.

This square wire mesh pattern is suitable for wall cladding, railing infill wire mesh panels, bridge fencing panels, partition screens, cabinets insert,s and quite a lot of other different applications.

Please refer to the following specifications.

Material	Stainless Steel 304 or 316, optional
Type	Rigid
Square Wire Dia.	1.8x1.8mm
Clear Hole Size	6.2mm
The total thickness of the fabric	3.6mm
Opening Area	40%
Block out	60%
Privacy Rate	60%
Weight	6.4kg/Square Meter
Finish	Mill Finish ( Original stainless steel bright finish）
The way of cutting	Straight Cut
All optional ways of cut	Straight Cut, Diamond Cut
All optional Finish	Mill Finish ( Original stainless steel bright finish）, Antique Bronze plating, Antique Copper plating, Antique brass plate, Vacuum titanium plated, Painted, PVDF Coated,
Customized specifications and Mini order accepted.
Note: All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication

Please refer to the following table for all the specifications of METART WW05.

Item #	Flat Strip	Clear Hole Dia. mm	Opening Area	Privacy Rate	Weight	Overall Thickness
METART 05-61585	6x1.5mm	8.5x8.5mm	34%	66%	9.5KG / Square Meter	3.4mm
METART 05-41022	4x1mm	2.2x2.2mm	11%	89%	9.2KG / Square Meter	3.2mm
METART 05-31507	3x1.5mm	7x7mm	49%	51%	7.0 KG / Square Meter	3.0mm
METART 05-31005	3x1.0mm	5x5mm	39%	61%	5.8 KG / Square Meter	2.0mm
METART 05-31204	3x1.2mm	4x4mm	33%	67%	7.6KG / Square Meter	2.5mm
METART 05-31205	3x1.2mm	5x5mm	39%	61%	7.0 KG / Square Meter	2.4mm
METART 05-31207	3x1.2mm	7x7mm	49%	51%	5.6 KG / Square Meter	2.4mm
METART 05-31210	3x1.2mm	10x10mm	59%	41%	4.3 KG / Square Meter	2.4mm
METART 05-31510	3x1.5mm	10x10mm	59%	41%	5.4 KG / Square Meter	3.0mm
METART 05-25103	2.5x1.0mm	3x3mm	29.7%	70.3%	7.1 KG / Square Meter	2.0mm
METART 05-22134	2.2x1.0mm	3.4x3.4mm	36.8%	63.2%	6.1 KG / Square Meter	2.0mm
METART 05-22834	2.2x0.8mm	3.4x3.4mm	36.8%	63.2%	4.9 KG / Square Meter	1.6mm
METART 05-22084	2.2x0.8mm	4x4mm	37%	63%	4.0kg / Square Meter	1.6mm
METART 05-18186	1.8x1.8mm	6.2x6.2mm	60%	40%	6.4KG / Square Meter	3.6mm
