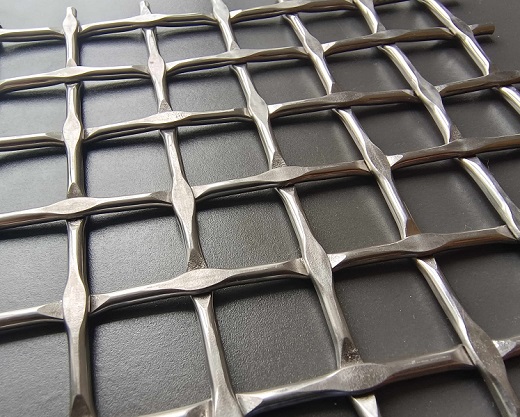

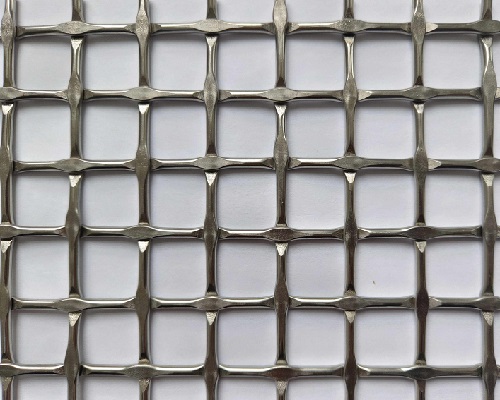

Crimped Stainless Steel Decorative Mesh with Antique Copper Finish
Pattern Code: METART-WW11
Material: Stainless Steel 304 / Stainless Steel 316 / SS201 / Brass / Copper
Type: Rigid Decorative Mesh
Opening Area: 72%
Weight: Approx 5.1kg/Square Meter
Finishes: Antique Brass/Copper/Bronze finishes and PVD plated finishes
Sheet Size: Up to 3000x4000MM (10x13 feet) for mill finish only
GET A QUOTEMETART BUILDING TECH offers a wide range of decorative wire meshes designed for various architectural applications. One of the popular options is the METART-WW11 decorative wire mesh, which is specifically designed for use in decorative partition screens and architectural railing infill meshes. This wire mesh is an excellent choice for those seeking a combination of beauty, strength, and affordability. It features the same pattern as our WW10 and hot-selling WW12 designs but with many differences in specifications and features.
Please refer to the following specification.
Material |
Stainless Steel 304 or 316,201,authentic brass,copper optional |
Type |
Rigid decoraitve mesh |
Wire Diameter |
2.75mm |
Clear Hole Size |
15.5mm |
The total thickness of the fabric |
3mm |
Opening Area |
72% |
Block out |
28% |
Privacy Rate |
28% |
Weight |
5.1kg/Square Meter |
Finish |
Stainless Steel Mill Finish |
Optional ways of cut |
Straight Cut, Diamond Cut. |
All optional Finish |
Mill Finish ( Original stainless steel finish), Brass Plated Finish, Copper Plated Finish. PVD titanium plated, Painted, PVDF Coated, |
Customized specifications and Mini order accepted. |
|
All measurements, including wire thickness, diameter, opening, and overall thickness, are nominal values. Actual specifications may have slight tolerances based on fabrication. |
►Large Opening Rate:
The METART-WW11 decorative wire mesh features a significant opening rate of up to 72%. This makes it an ideal choice for cost-effective partition screen infill mesh, as it does not offer much privacy but is mainly used as an ornamental partition feature. The large opening rate also provides excellent airflow and light transmission, perfect for indoor spaces that require natural ventilation and lighting.
►Heavy Duty Wire Diameter:
METART-WW11 decorative wire mesh is made of 2.75mm wires in both warp and weft directions, the same wire gauge as WW12. This medium wire diameter strikes a balance between strength and flexibility. The wire is strong enough to withstand the weight and pressure of people leaning against it for security purposes yet flexible enough to bend and form different shapes to suit exotic architectural designs.
►Adaptable with Versatile Raw Materials:
The METART-WW11 decorative wire mesh is made of high-quality raw materials, including stainless steel 304 and 316, copper, brass, and the affordable SS201 grade stainless steel. These materials are carefully chosen to meet specific design and functional requirements, ensuring that the finished product is aesthetically pleasing, highly durable, and resistant to wear and tear.
►Cost-Effective Decorative Woven Wire Mesh Option:
The METART-WW11 decorative wire mesh is a cost-effective option for those seeking a stronger wire mesh than the cheaper METART-WW10 variant but cheaper than the more expensive METART-WW12. It is an excellent choice for those needing an intermediate decorative wire mesh pattern for partition infill or architectural railing infill.
►Customization:
METART offers highly customized services for the METART-WW11 decorative wire mesh. Customers can choose from a range of finishes, including copper plating, brass plating, antique copper & Brass plating, Antique bronze plating, and PVD plating (gold PVD titanium plating, rose gold, champagne, and other custom colors). The wire mesh can also be customized to fit specific dimensions and shapes, making it an excellent option for those with unique design requirements. If you are looking for cheaper surface treatment, we can also do a regular painting for you.
In summary, the METART-WW11 woven wire mesh is an excellent choice for those seeking a cost-effective, strong, and aesthetically pleasing wire mesh for partition screens and railing infill. With its large opening rate, medium wire diameter, and high-quality raw materials, it is a versatile wire mesh that can be customized to fit various design requirements.
