METART-WW13-Bookcase Wire Mesh Door Inserts

Specification

Material: Stainless Steel 304 or Stainless Steel 316

Type: Rigid Cabinet Door Mesh

Opening Area: 33%

Weight: Approx 5.3 kg/Square Meter

Finish: Mill Finish

Screen Width: up to 4 Meters, Mill finish only

Screen Length: up to 20 Meters, mill finish only

GET A QUOTE

Introduction

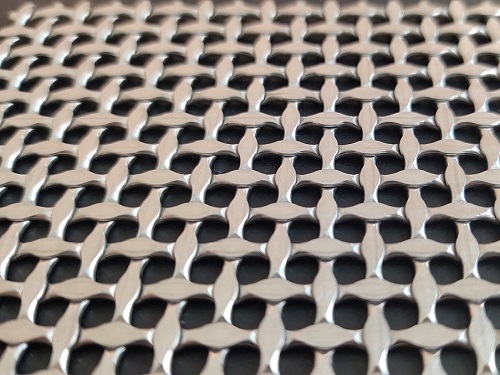

METART-WW13 is a stunning decorative woven mesh that showcases the artistry of traditional craftsmanship. Its diamond-crimped pattern produces circular-shaped holes that are visually appealing and unique. Although it may resemble a perforated panel, the woven construction provides unmatched stability and durability.

This rigid wire mesh is available in Stainless Steel 304 or 316 and is characterized by a 1.75mm wire diameter and a clear hole size of about 3.5mm. The total thickness of the fabric is around 1.46mm, ensuring its ability to withstand wear and tear over time.

The mesh's opening area of 33% and privacy rate of 67% make it ideal for use in applications that require privacy without sacrificing light or airflow.

Its lightweight structure, weighing only 5.3 kg per square meter, allows for easy installation and handling.

This is the mill-finished version of METART-WW13 decorative wire mesh. Many other different finishes can be produced based on customers' needs.

This ornamental wire mesh pattern provides a modern and elegant aesthetic that complements a variety of design styles. It is an excellent choice for creating decorative kitchen cabinet grille doors or replacing office file cabinet door glass, as well as for wall cladding metal screens, architectural glass metal inserts, hotel lobby partition screens, and outdoor privacy screens.




Please refer to the following specification.

Material

Stainless Steel 304 ,316, 201 optional

Type

Rigid mesh

Wire Diameter before flattened.

1.75mm

Clear Hole Size

3.5mm

The total thickness of the fabric

1.46mm

Opening Area

33%

Block out

67%

Privacy Rate

67%

Weight

5.3 kg/Square Meter

Finish

Stainless Steel Mill Finish

The way of cutting

Straight Cut

All optional ways of cut

Straight Cut, Diamond Cut

All optional Finish

Mill Finish ( Original stainless steel bright finish）,
Antique Bronze plating, Antique Copper plating, Antique brass plate, vacuum titanium plated, Painted, PVDF Coated,

Customized specifications and Mini order accepted.

Note:

All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication
