METART-WW13 Antique Brass Cupboard Door Mesh_METART BUILDING TECH CO., LTD

METART-WW13 Antique Brass Cupboard Door Mesh

Specification

Material: Stainless Steel 304 / Stainless Steel 316 / SS201

Type: Rigid Cabinet Wire Mesh

Opening Area: 33%

Weight: Approx 5.3 kg/Square Meter

Finish: Antique Brass Plated

Screen Width: up to 4 Meters, Mill finish only

Screen Length: up to 20 Meters, mill finish only

GET A QUOTE

Introduction

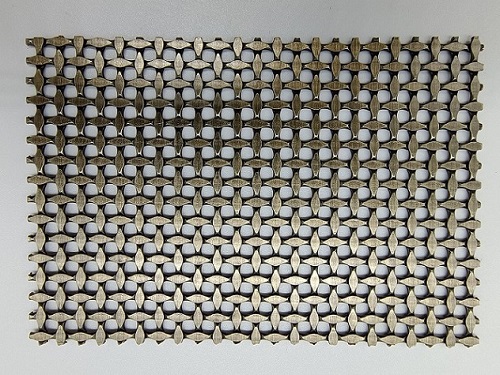

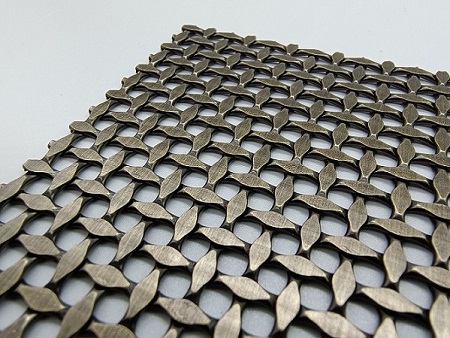

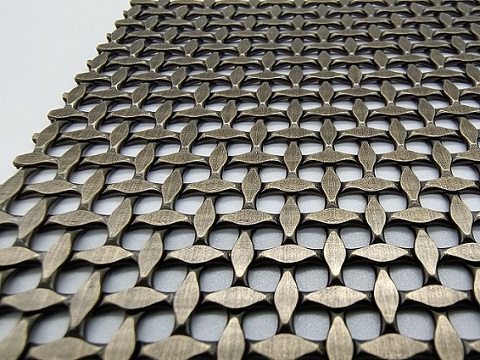

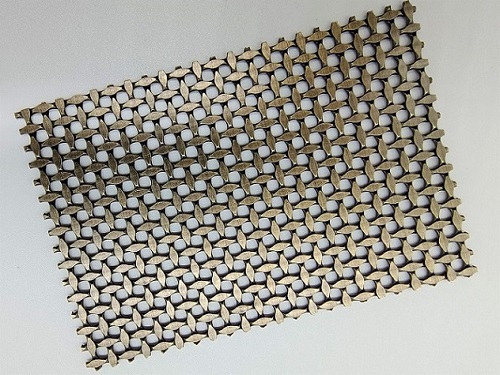

This is an antique brass-plated version of the pattern METART-WW13.

It is a diamond-crimped decorative woven mesh. After weaving, this design makes the holes similar to circles.

It might look like a round hole perforated panel, but if you observe it closely, it is produced in an incredibly woven way.

It is a rigid type of decorative woven mesh, But, according to its design, this pattern is not suitable for security-required projects.

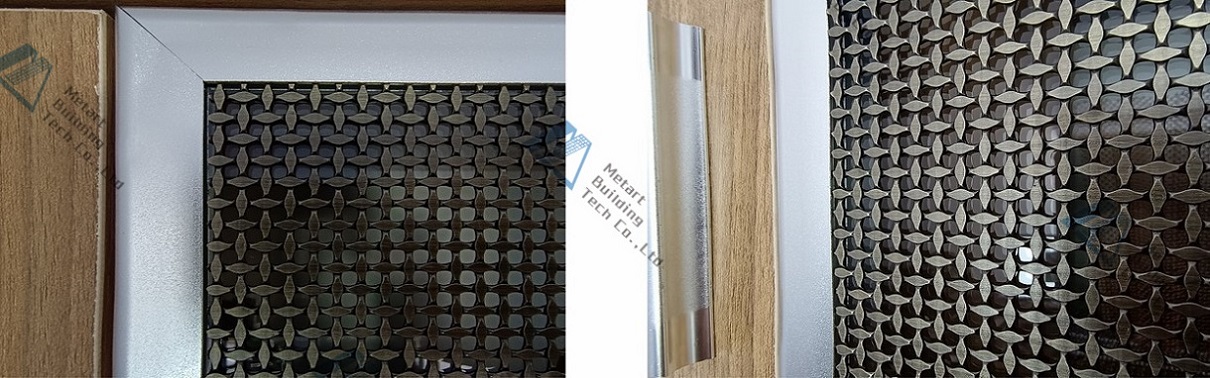

But you can make it into a really fancy kitchen cabinet grille door, or replace your office file cabinet door glass with this creative wire mesh.

And you can use it as wall cladding metal screens, architectural glass metal inserts, hotel lobby partition screens, or privacy screens by the side of a swimming pool.

Please refer to the following specification.

Material	Stainless Steel 304 , 316, 201 optional
Type	Rigid mesh wire
e Diameter Before Flattened	1.75mm
Clear Hole Size	3.5mm
The total thickness of the fabric	1.46mm
Opening Area	33%
Block out	67%
Privacy Rate	67%
Weight	5.3kg/Square Meter
Finish	Antique Brass Plated
The way of cutting	Straight Cut
All optional ways of cut	Straight Cut, Diamond Cut
All optional Finish	Mill Finish ( Original stainless steel bright finish）, Antique Bronze plating, Antique Copper plating, Antique brass plate, vacuum titanium plated, Painted, PVDF Coated,
Customized specifications and Mini order accepted.
Note: All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication
