Specification

Material: SS304 / SS316 / SS201 / Pure Copper, Brass, Bronze etc.

Type: Rigid Cabinet Wire Mesh Decorative

Opening Area: 29.7%

Weight: Approx 7.1kg/Square Meter

Finish: Antique Brass Plated

Screen Width: Within 3000MM

Screen Length: Within 30 Meters (for mill finish only)

GET A QUOTE

Introduction

Introducing Architectural Decorative Metal Grille METART-WW05-25103 for Cabinetry.

METART-WW05-25103 represents the flat wire decorative mesh, which is made of 2.5mm flat wire with a 1.0mm wire thickness and a 3x3MM aperture size.

Just like most architectural decorative woven wires, this #25103 flat metal wire fabric is also mainly made of stainless steel wires, including SS304, SS201, and SS316.

If this architectural wire mesh panel has to be exposed in an outdoor environment, a 316 grade is always recommended as it is super corrosion-resistant.

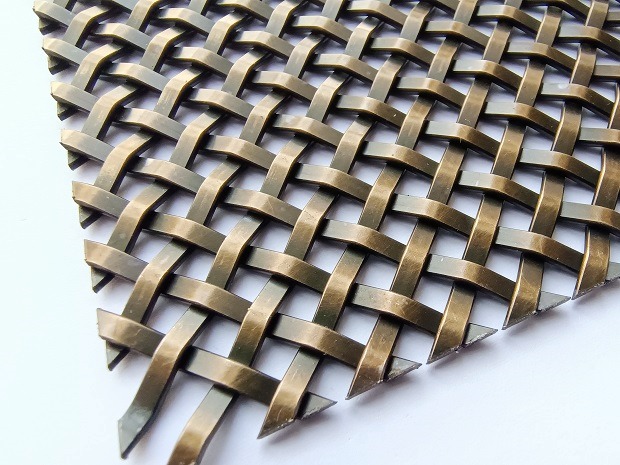

Please refer to the following pictures, showcasing two different approaches to cutting, each featuring different decorative hole shapes.

From the above exhibit photos, you can see that they are brass plated with an antique finish.

This mesh material is a nice choice for your kitchen cabinet door mesh panel or wine cabinet door infill mesh.

Also, it can be a nice material for commercial partitioning or laminated glass mesh for both decoration and security purposes.

Please refer to the following specifications.

Material	Stainless Steel 304, 316, or 201 optional
Type	Rigid Cabinet Wire Mesh
Flat Wire Strip:	2.5x1mm
Clear Hole Size	3mm
The total thickness of the fabric	2mm
Opening Area	29.7%
Block out	70.3%
Privacy Rate	70.3%
Weight	7.1kg/Square Meter
Finish	Antique brass Plated.
The way of cutting	Straight Cut
All optional ways of cut	Straight Cut, Diamond Cut
All optional Finish	Mill Finish ( Original stainless steel bright finish）, Brass Plated Finihs, Copper Plated Finish, Antique Bronze plated, Antique Copper plated, Antique brass plated, PVD titanium plated, Painted, PVDF Coated
Customized specifications and Mini order accepted.
Note: All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication

Please refer to the following table for all the specifications of METART WW05

Item #	Flat Strip	Clear Hole Dia. mm	Opening Area	Privacy Rate	Weight	Overall Thickness
METART 05-61585	6x1.5mm	8.5x8.5mm	34%	66%	9.5KG / Square Meter	3.4mm
METART 05-41022	4x1mm	2.2x2.2mm	11%	89%	9.2KG / Square Meter	3.2mm
METART 05-31507	3x1.5mm	7x7mm	49%	51%	7.0 KG / Square Meter	3.0mm
METART 05-31005	3x1.0mm	5x5mm	39%	61%	5.8 KG / Square Meter	2.0mm
METART 05-31204	3x1.2mm	4x4mm	33%	67%	7.6KG / Square Meter	2.5mm
METART 05-31205	3x1.2mm	5x5mm	39%	61%	7.0 KG / Square Meter	2.4mm
METART 05-31207	3x1.2mm	7x7mm	49%	51%	5.6 KG / Square Meter	2.4mm
METART 05-31210	3x1.2mm	10x10mm	59%	41%	4.3 KG / Square Meter	2.4mm
METART 05-31510	3x1.5mm	10x10mm	59%	41%	5.4 KG / Square Meter	3.0mm
METART 05-25103	2.5x1.0mm	3x3mm	29.7%	70.3%	7.1 KG / Square Meter	2.0mm
METART 05-22134	2.2x1.0mm	3.4x3.4mm	36.8%	63.2%	6.1 KG / Square Meter	2.0mm
METART 05-22834	2.2x0.8mm	3.4x3.4mm	36.8%	63.2%	4.9 KG / Square Meter	1.6mm
METART 05-22084	2.2x0.8mm	4x4mm	37%	63%	4.0kg / Square Meter	1.6mmm
METART 05-18186	1.8x1.8mm	6.2x6.2mm	60%	40%	6.4KG / Square Meter	3.6mm
