Specification

Pattern Code: METART-WW05T-25125

Material: Stainless Steel 304,316,201, super alloy and copper alloy

Type: Rigid Architectural Wire Mesh with designs

Opening Area: 25%

Square Meter Weight: About 7.3KG/㎡

Finish: Antique Bronze Plated (other finishes refer to the specification table)

Sheet Size: Width within 3000mm, Length within 4000mm

GET A QUOTE

Introduction

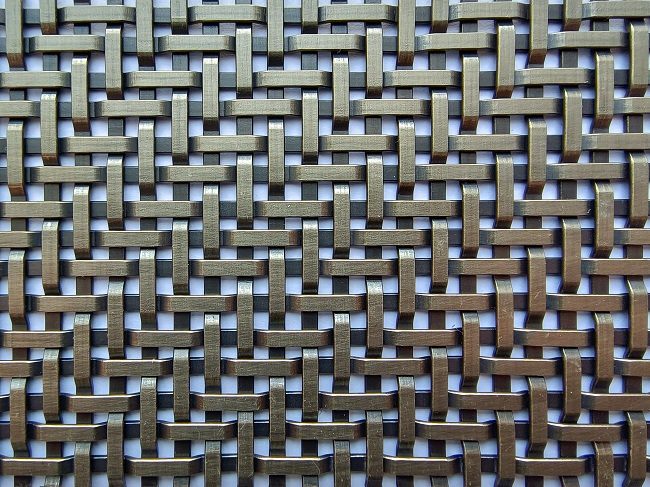

"METART-WW05T-25125" stands out as a well-designed wire grille pattern, marked by the use of a twill weave denoted by the letter "T" in its code. This simple yet effective weaving technique adds a touch of elegance to the overall appearance of these flat-strip decorative wire mesh panels.

EXPLANATION OF THE NUMBERS IN THE PATTERN CODE

Breaking down the numerical code "25125," we find that this wire grille boasts a 2.5mm wide x 1mm wire thickness and an approximately 1.8 to 2.5mm hole size, which adds a dynamic quality to its appearance. This variability not only contributes to the visual interest of the mesh but also expands its range of potential applications in different settings.

The number "T" showcases the weaving technique, "TWILL WEAVE". The twill weave technique employed here involves warp and weft wires moving over two wires and then under two wires in a repeated pattern. This straightforward weaving approach contributes not only to the panel's strength but also enhances its visual appeal. The diagonal view reveals a straightforward yet captivating line formed by intersecting wire strips, creating a visually appealing effect.

Pattern Number	METART-WW05T-25125
Material	SS304, SS201, SS316, Super Alloy, Copper, Brass, Bronze, etc.
Type	Rigid Wire Mesh Panel
Flat Wire Strip Size:	2.5x1mm
Clear Hole Size	1.8-2.5mm
The overall thickness of the wire mesh	1.9mm
Opening Area	25%
Privacy Rate	75%
Weight	7.3kg/Square Meter
Finish	Antique Bronze Plated.
The way of cutting	Straight Cut
All optional ways of cut	Straight Cut, Diamond Cut
All optional Finish	Mill Finish (Original stainless steel finish) Copper Plated, Brass Plated Antique Bronze Plated Finish, Antique Brass Plated, Antique Copper Plated PVD Titanium Golden Plated, PVD Rose Gold Plated, PVD Champagne Gold Plated, PVD Grey Plated, PVD black Plated, Regular Painted, PVDF Coated
Customized specifications and mini-orders accepted.
Note: All measurements, including wire size, diameter, opening, and overall thickness, are nominal values. Actual specifications may include slight tolerances in accordance with fabrication requirements."

PRACTICAL APPLICATIONS

With an overall thickness of approximately 1.9mm, METART-WW05T-25125 finds a sweet spot between style and functionality.

Its 25% opening rate makes it suitable for interior partitions, especially in commercial settings like shop fitting where a good privacy rate is needed.

Just like many other members of the METART-WW05 selection, this decorative metal grille is also a perfect infill wire mesh panel for cabinet doors or furniture manufacturing.

METART-WW05T-25125 distinguishes itself with its simple yet effective twill weave design and practical specifications. Its straightforward weaving technique and versatile applications make it a reliable choice for interior design, offering a balanced blend of style and functionality in various settings.
