Architectural Wire Mesh Railing Infill Panel - Made of Decorative Metal Ribbons - METART-WW44-51226

Specification

Pattern Code: METART-WW44-51226

Type: Rigid Architectural Wire Mesh

Materials: SS304, SS316, SS201, Pure copper, brass, bronze, etc.

Opening Area: 62%

Weight: Approx 5.4kg/Square Meter

Screen Width: Customized within 4 meters, Maximum, Mill Finish

Screen Length: Customized. maxiumum within 4M (13 feet), Mill Finish

GET A QUOTE

Introduction

Introducing the METART-WW44-51226 Architectural Wire Mesh Railing Infill Panel

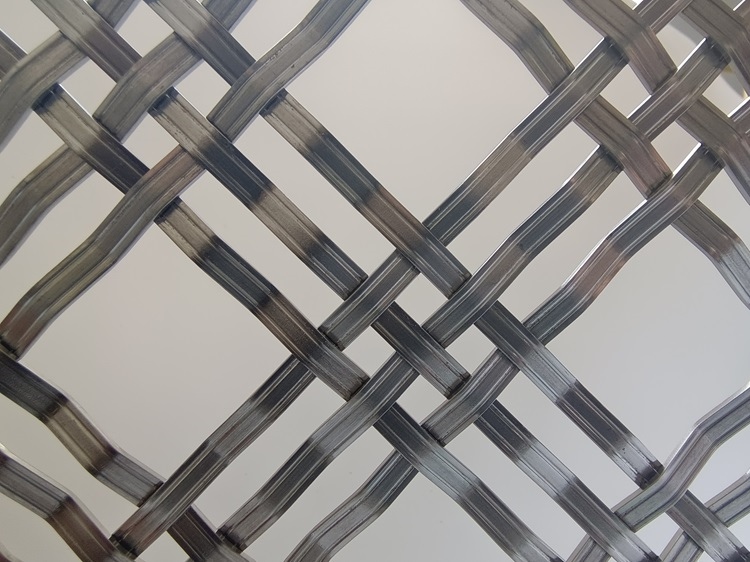

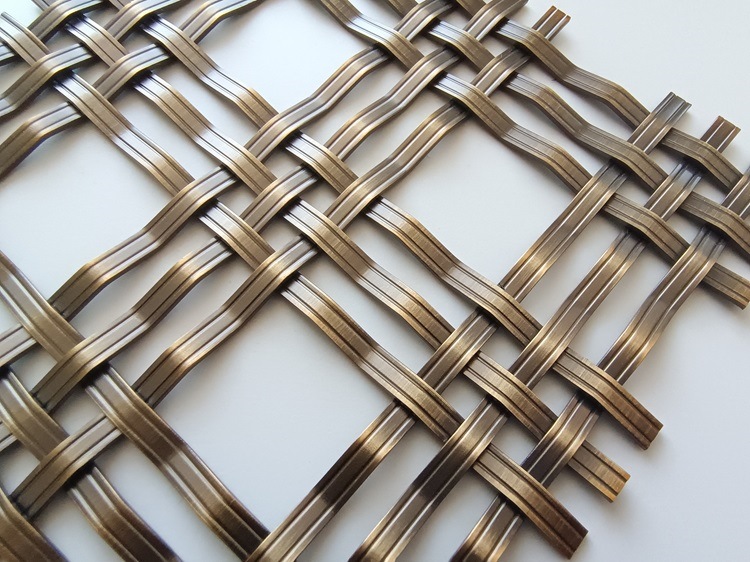

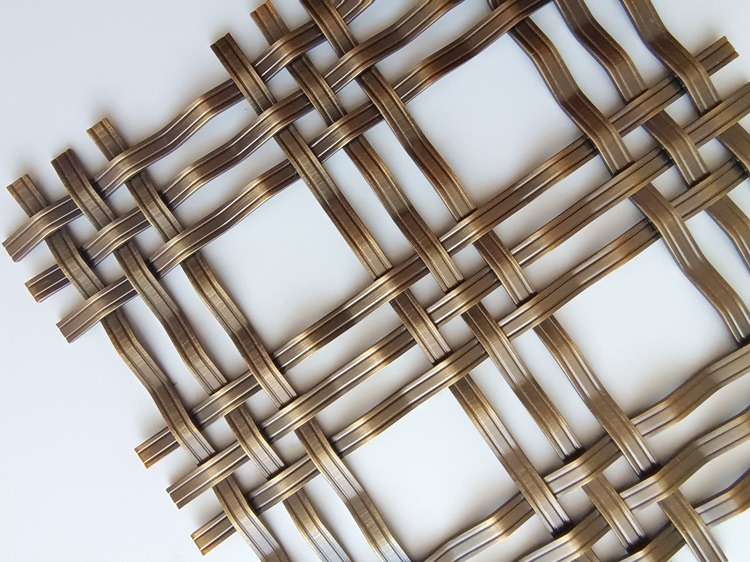

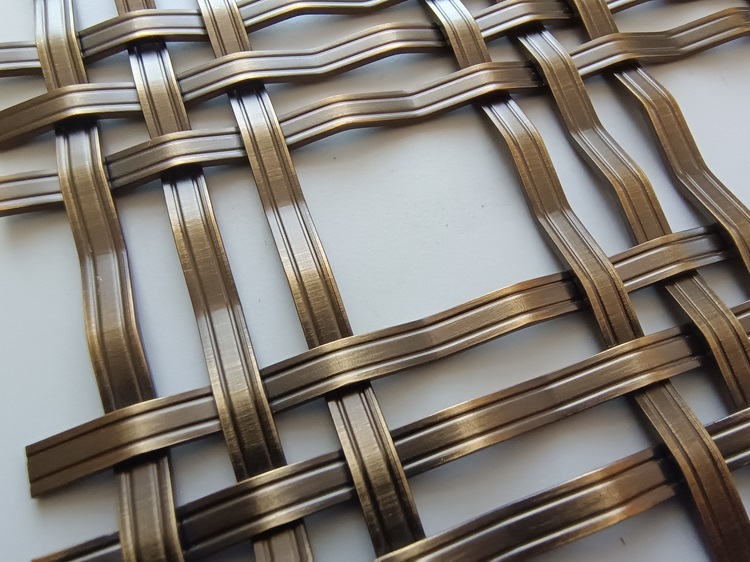

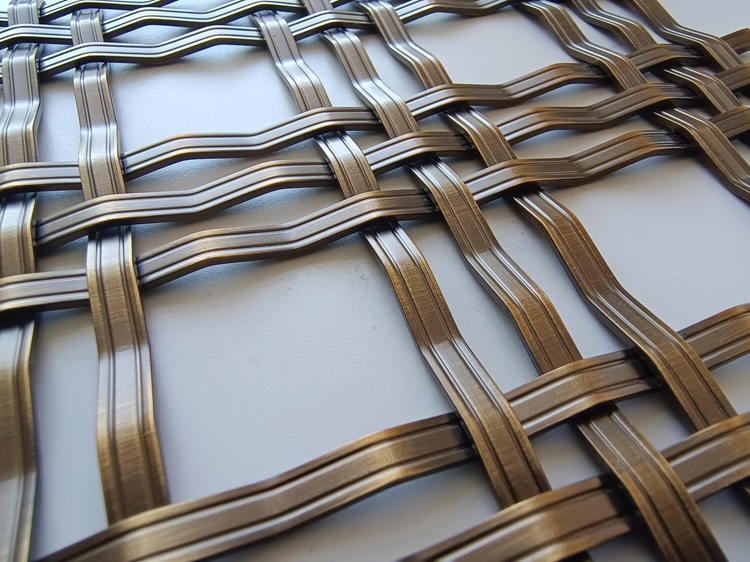

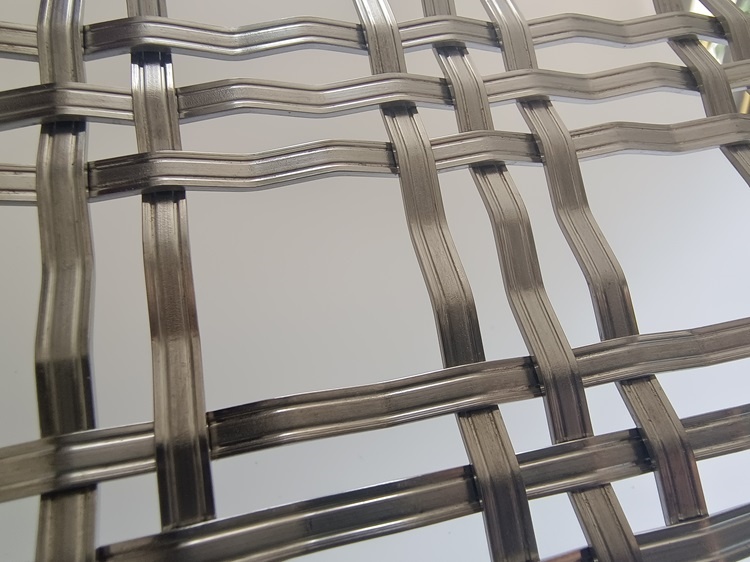

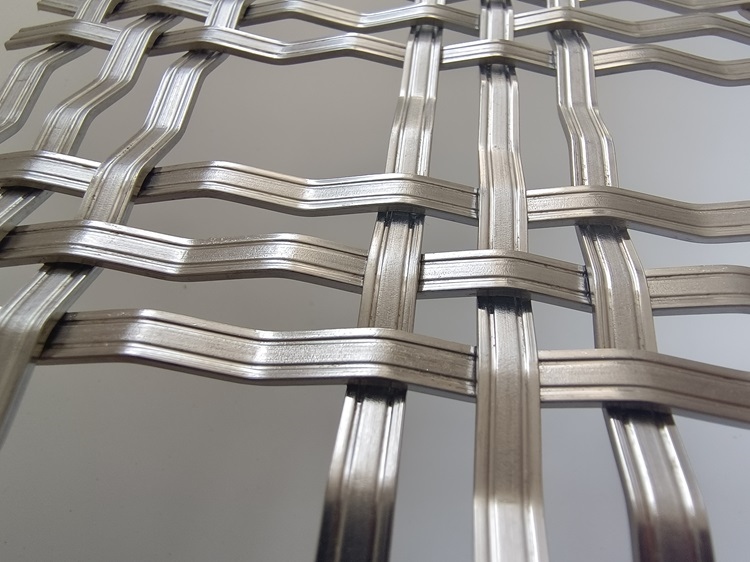

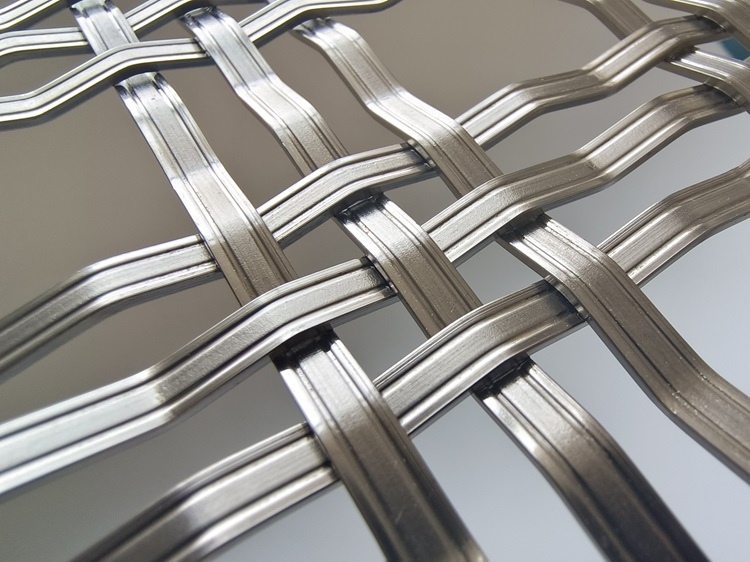

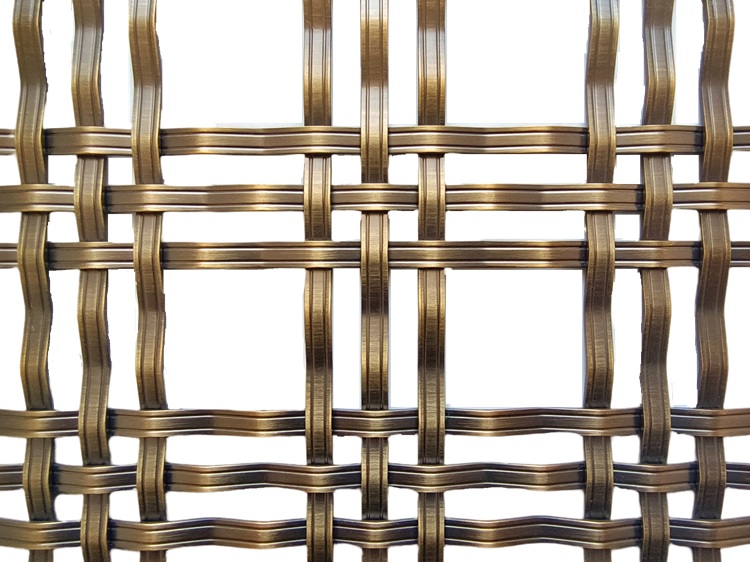

The METART-WW44-51226 is a robust addition to our WW44 series of architectural wire mesh. Crafted from crimped decorative metal ribbons measuring 5mm in width and 1.2mm in thickness, this panel features a unique design with small openings of 5x5 mm and larger openings of 26x26mm.

Understanding the Pattern Code

WW44: Refers to the Woven Wire 44 series.

Number "512": Indicates 5mm wide x 1.2mm thick metal strips.

Number "26": Denotes the size of the larger square openings.

Specification Overview

Material	SS304, SS316, SS201, Pure Brass, Pure Copper, etc.
Type of Mesh	Rigid Architectural Wire Mesh
Metal Ribbon Size	5x1.2mm
Small Opening Size	5.5x5.5mm
Big Opening Size	26x26mm
Slot Opening Size	5.5x26mm
The total thickness of the fabric	3mm
Opening Area	62%
Block out	38%
Weight	5.4kg/Square Meter

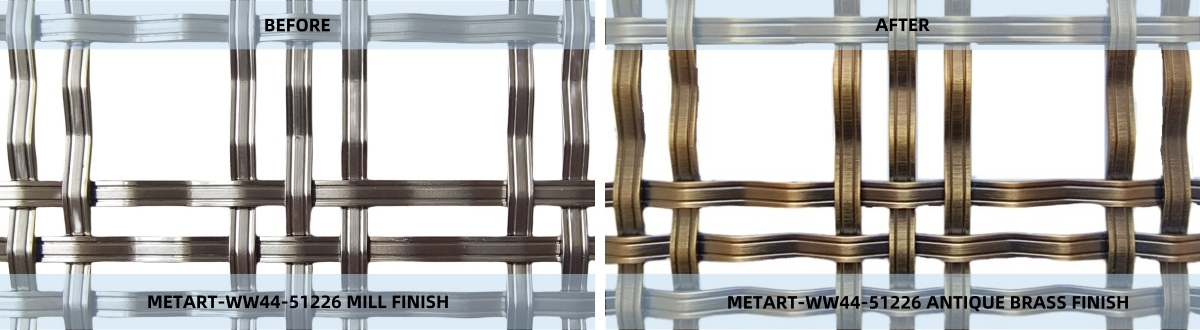

Finish	Antique Brass Plated Finish
All optional ways of cut	Straight Cut, Diamond Cut.
All optional Finishes	Mill Finish ( Original stainless steel finish)， Antique Copper plated finish Antique Bronze plated finish, Antique Brass plated finish PVD titanium plated finish, Baking Painted finish

Broad Applications

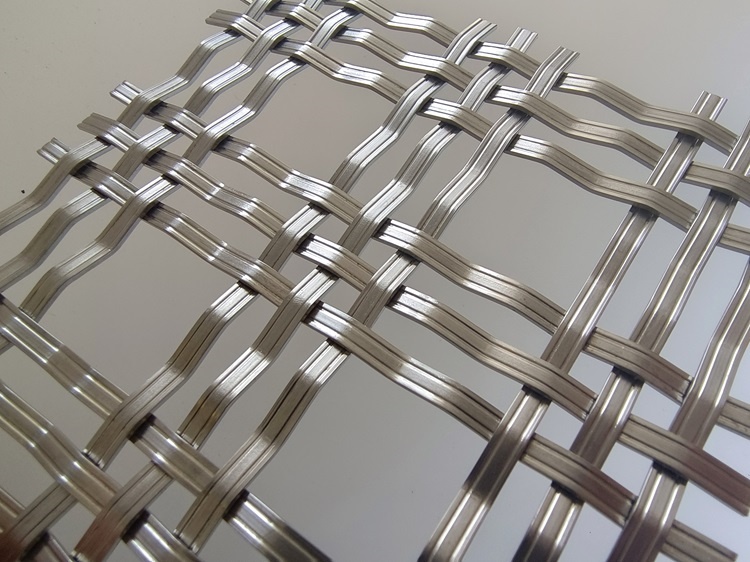

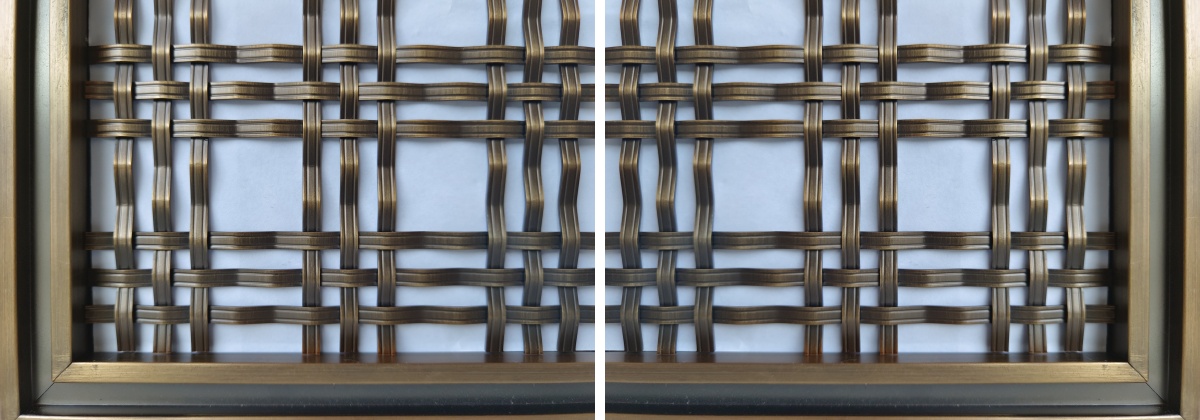

► Balustrade / Railing Infill Panels

► Commercial Partition Screen Infill Panels

► Bottle Display Rack Decoration in a bar

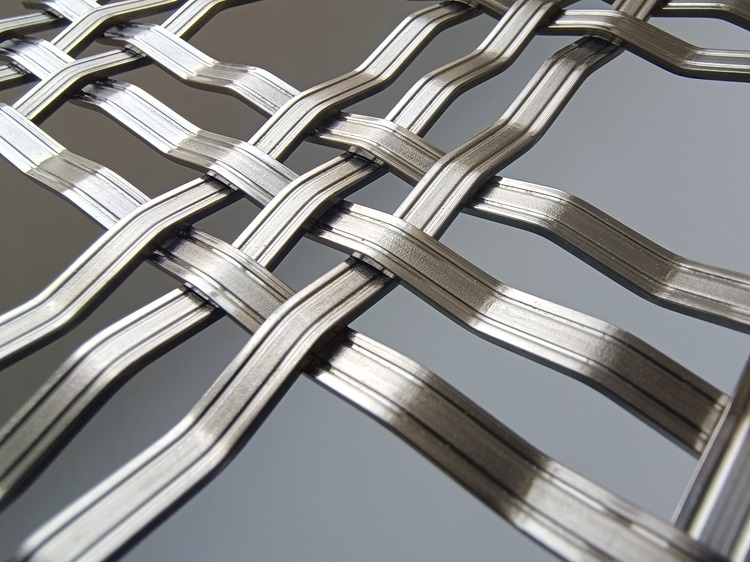

► High-end Architectural Fence infills
