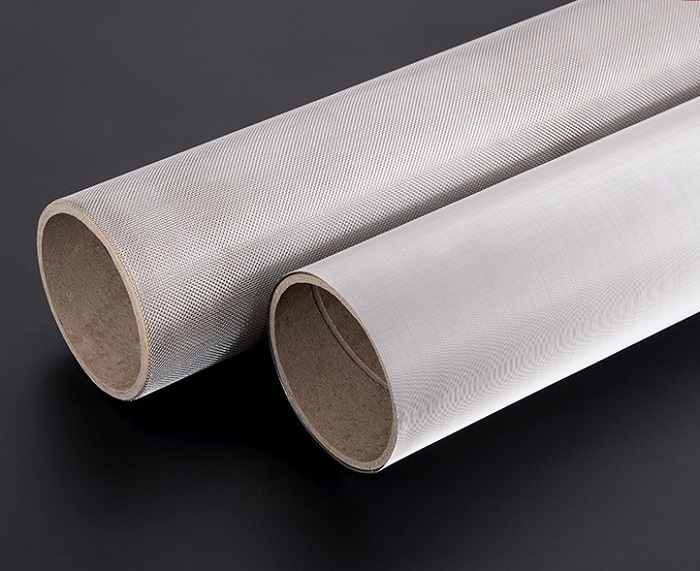

Titanium Mesh-Ta2 Wire Mesh

Specification

Material: Titanium Ta 2 wires

Type: Industrial Special Alloy Wire Mesh

Weave Pattern: Plain Weave, Twill Weave, Dutch Weave, Crimped Weave, etc.

Mesh Count: Custom made.

Wire Diameter: Custom made.

Width: Custom made

Length: 30M and other custom length.

GET A QUOTE

Introduction

As we know, there are two commonly used grades of Titanium wire mesh, Ta1 wire mesh, and Ta2 mesh, here we are introducing TA2 wire mesh.
CP Titanium Grade 2 wire mesh is also known as TA2 wire mesh, TiGr 2 wire mesh, UNS R50400 wire mesh, or Unalloyed CP Titanium wire mesh.
Ta2 wire mesh has moderate strength. This type of titanium wire mesh has excellent cold-forming characteristics, welding properties, and resistance to oxidation and corrosion. Grade 2 titanium wire mesh is often used for architectural, automotive, medical, marine, chemical, and hydrocarbon processing, and power generation applications.

Features of Titanium Ta2 Woven Wire Mesh

Industrial Application: Ta2 CP2 is one of the most durable metals in its purest form.

Heat Resistance: Ta2 normally has a higher heat resistance than other metals. So, the alloy can withstand a temperature but only up to 800°F without any problem.

Corrosion Resistance: TA2 wire mesh is highly resistant to corrosion. It can even be corrosion-free if used in seawater.

No Oxidization: As there is minimal corrosion taking place, it is free from oxidization under normal conditions.

Chemical Composition of TA2 Titanium wire mesh

Fe

C

N

H

O

Ti

0.3 Max

0.1 Max

0.03Max

0.015 Max

0.25 Max

Balanced

Physical Properties of TA2 Titanium wire mesh

Property



Melting Range

1670°C (3040°F)

Density

0.164(lb/In3) / 4.51(G/CM3)

Themal Conductivity

21.79(W/m K ) / 12.6( Btu-in/Fh2hr-F)

Thermal Capacity (Specific Heat)

112(MPa) / 16300(J/Ksi)

Specification List:

Mesh Count

/Inch

Wire Diameter

Aperture

Open Area

%

Weight (LB)

/100 Square Foot

Inch

MM

Inch

MM

1 × 1

.080

2.03

.920

23.37

84.6

41.1

2 × 2

.063

1.60

.437

11.10

76.4

51.2

3 × 3

.054

1.37

.279

7.09

70.1

56.7

4 × 4

.063

1.60

.187

4.75

56.0

104.8

4 × 4

.047

1.19

.203

5.16

65.9

57.6

5 × 5

.041

1.04

.159

4.04

63.2

54.9

6 × 6

.035

.89

.132

3.35

62.7

48.1

8 × 8

.028

.71

.097

2.46

60.2

41.1

10 × 10

.025

.64

.075

1.91

56.3

41.2

10 × 10

.020

.51

.080

2.03

64.0

26.1

12 × 12

.023

.584

.060

1.52

51.8

42.2

12 × 12

.020

.508

.063

1.60

57.2

31.6

14 × 14

.023

.584

.048

1.22

45.2

49.8

14 × 14

.020

.508

.051

1.30

51.0

37.2

16 × 16

.018

.457

.0445

1.13

50.7

34.5

18 × 18

.017

.432

.0386

.98

48.3

34.8

20 × 20

.020

.508

.0300

.76

36.0

55.2

20 × 20

.016

.406

.0340

.86

46.2

34.4

24 × 24

.014

.356

.0277

.70

44.2

31.8

30 × 30

.013

.330

.0203

.52

37.1

34.8

30 × 30

.012

.305

.0213

.54

40.8

29.4

30 × 30

.009

.229

.0243

.62

53.1

16.1

35 × 35

.011

.279

.0176

.45

37.9

29.0

40 × 40

.010

.254

.0150

.38

36.0

27.6

50 × 50

.009

.229

.0110

.28

30.3

28.4

50 × 50

.008

.203

.0120

.31

36.0

22.1

60 × 60

.0075

.191

.0092

.23

30.5

23.7

60 × 60

.007

.178

.0097

.25

33.9

20.4

You May Also Like

Application

-Heat exchanger parts
-Aerospace Industry
-Etched fabric
-Parts of Neurostimulation devices

GET A QUOTE
