Stainless Steel Wire Mesh Panels: An Ideal Solution for Architectural Railing Systems

Stainless steel wire mesh with a robust structure is an excellent choice for architectural railing systems. These panels, custom cut to required sizes, provide a balance of strength and aesthetic appeal, making them ideal for architectural railing infills. Particularly those with intricate and attractive designs enhance the visual appeal of any space.

Unlike delicately crafted wire mesh, these panels are heavy-duty and engineered for durability. One standout option is the METART-WW24-4812, a budget-friendly architectural stainless steel mesh designed specifically for railing infills. This pattern is a variant of the original WW24 but features several enhancements that improve its performance.

Key improvements include upgrading from 1.5mm wire rods to sturdier 2mm wire rods and incorporating a wider 4.8mm wire strip. Additionally, the opening size has been modified to approximately 8.1 to 8.3mm, with slight variations when measuring different openings. These larger openings enhance the product’s see-through rate and ventilation without compromising its strength and rigidity.

The METART-WW24-48152 provides a reliable and visually appealing solution for any architectural railing project, combining functionality and design at an affordable price.

Interpretation of Pattern Code WW24-48152

WW24: Refers to the architectural woven wire series WW24.

48: Indicates a 4.8 mm wide wire strip.

15: Represents a nominal thickness of 1.5 mm for the wire strip.

2: Denotes regular stainless steel wire rods with a nominal wire diameter of 2 mm (actual measured diameter is approximately 1.95 mm).

Specification Overview Table

Unique Hybrid Composition of Stainless Steel Wire Mesh

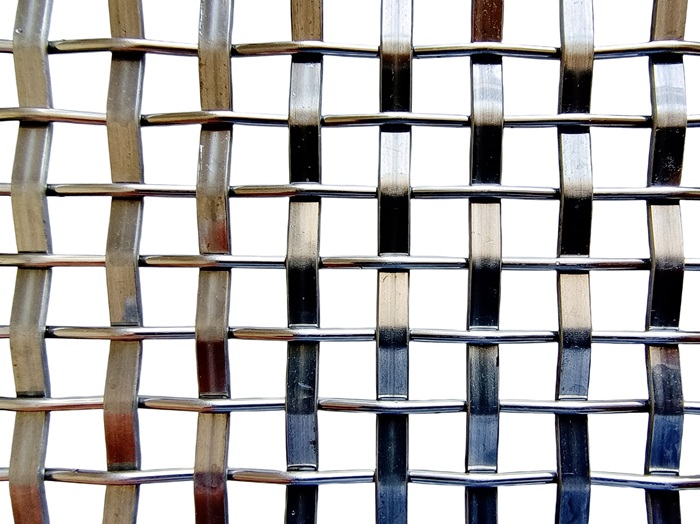

This stainless steel wire mesh is a hybrid woven wire, crafted from two distinct types of wires: stainless steel round wires and wire strips.

These elements are interwoven to create a sturdy mesh with a square-opening pattern, offering a unique texture and enhanced structural integrity.

This combination makes it an excellent choice for modern architectural applications where both durability and aesthetics are essential.

Choosing Proper Raw Material for Your Project

Selecting the right raw material for your architectural railing infill panels is essential, as these panels are often used in varied environments. Whether the application is indoors or outdoors, in dry areas or heavily polluted regions, or inland cities versus coastal cities, different factors need to be considered to ensure optimal performance and longevity.

For interior spaces, standard stainless steel may suffice, but for exterior applications such as building facades or outdoor balustrades, materials with enhanced corrosion resistance are crucial. Coastal environments and heavily polluted areas, in particular, require materials that can withstand harsh conditions without deteriorating.

While stainless steel is a popular and reliable choice, we also offer customization in other high-performance alloys. These include duplex stainless steel and various nickel-based superalloys that provide superior resistance to corrosion and wear. Additionally, for projects demanding a luxurious finish, true copper, brass, and bronze materials are available, combining both decorative appeal and durability.

The Importance of Specifying Direction When Purchasing Architectural Wire Mesh

When purchasing architectural wire mesh, it is crucial to specify the correct orientation and direction of the wire.

The arrangement of the stainless steel round wires and flat wire strips can significantly impact both the functionality and aesthetic of your project. Ensuring that you communicate the desired direction before ordering will help us provide you with a product that meets your specific needs and enhances the overall design.

Don’t overlook this vital detail to achieve the best results in your architectural applications.

This stainless steel wire mesh is an excellent choice for railing infills, providing both safety and aesthetic appeal.

However, its versatility extends far beyond this application. It is also ideal for commercial partition screen infills, allowing for stylish division of spaces while maintaining visibility.

Additionally, our architectural wire mesh enhances building facades, adding a modern touch to external designs. It can even be used for outfitting wire mesh, making it a functional and attractive solution for various projects.

With its durable construction and flexible applications, this wire mesh is perfect for a wide range of architectural needs.
