METART-WW44 Showcase Decorative Metal Grilles for cabinets and furniture
Material: Stainless Steel 304 / Stainless Steel 316 / SS201
Type: Rigid Decorative Mesh
Opening Area: 62.8%
Weight: Approx 5.6kg/Square Meter
Finish: Antique Brass Finish ( other finishes vailable)
Max Width: 4000MM (13 feet) for mill finish only
Max Length: 20 Meters (66 feet) for mill finish only.
GET A QUOTE
Decorative Metal Grilles are just another name people usually use for decorative metal meshes. It mainly refers to the decorative woven wire mesh grilles. But other architectural mesh that is visually appealing can be also classified as decorative metal grilles, including expanded mesh grilles, perforated mesh grilles.

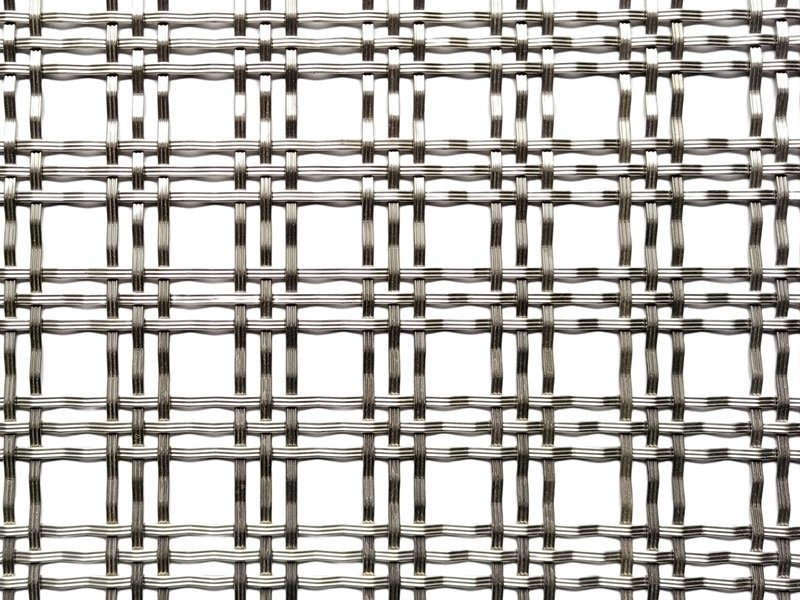

INTRODUCING DECORATIVE METAL GRILLES PATTERN "METART-WW44"
Woven decorative wire pattern METART-WW44 is made of 2.9x1mm grooved double flat wires both vertically and horizontally. The weaving involves in reapting 3 wire strips at a certain interval to create a this simple but elegent design.

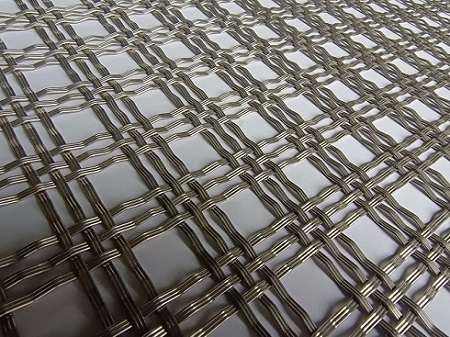

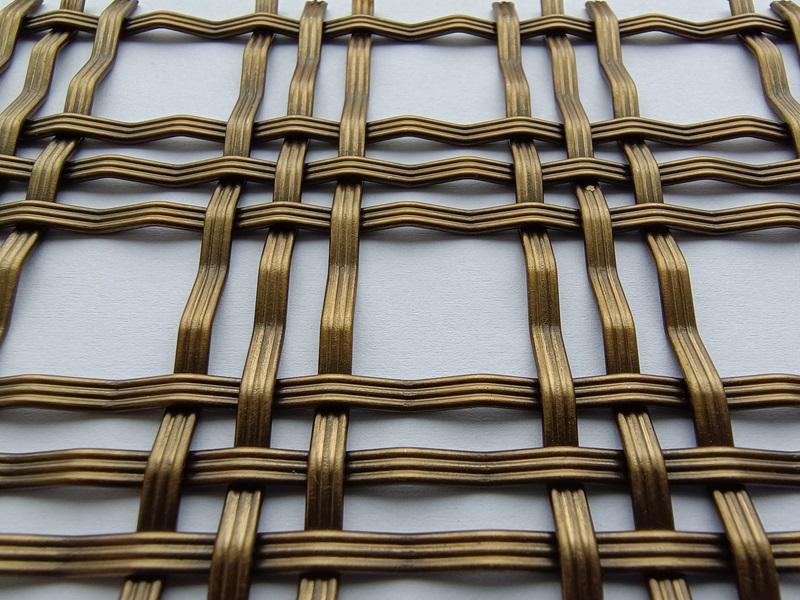

Please refer to the following pictures, the left one is original finish of stainless steel, the right one is Antique Brass Plated Finish.
This architectural woven wire mesh pattern is widely used in both interior and exterior decoration projects including hotel wall cladding, hotel decorative partition screening, shopfitting decorative wire mesh, showcase decorative door inserts, laminated glass wire mesh, decorative ceiling mesh, etc.
Custom colors and specifications are accepted.
Please refer to the following specifications.
|
Raw Material Options |
Stainless Steel 304,316, 201 |
|
Type |
Rigid Decorative Mesh |
|
Flattened Wire Strip |
2.9x1mm |
|
Biggest Hole Size |
15.5x15.5mm |
|
Smallest Hole Size |
3.3x3.3mm |
|
Slot Hole Size |
3.3x15.5mm |
|
The total thickness of the fabric |
2.2mm |
|
Opening Area |
62.8% |
|
Block out |
37.2% |
|
Privacy Rate |
37.2% |
|
Weight |
5.6kg/Square Meter |
|
Finish |
Mill Finish |
|
The way of cutting |
Straight Cut |
|
All optional ways of cut |
Straight Cut, Diamond Cut. |
|
All optional Finish |
Mill Finish ( Original stainless steel finish）, PVD Plated Gold ColorPVD Plated Rose GoldPVD Plated Black, PVD Plated Grey, Regular Painted to any color. PVDF Painted. |
|
Customized specifications and Mini order accepted. |
|
|
Note: All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication |
|
