METART-WW37-Elevator Cladding Stainless Steel Mesh for Architecture and Decoration

Specification

Material: Stainless Steel 304 / Stainless Steel 316

Type: Rigid Mesh

Opening Area: 0%

Weight: Approx 11.3kg/Square Meter

Finish: Mill Finish

Screen Width: Customized.

Screen Length: Customized.

GET A QUOTE

Introduction

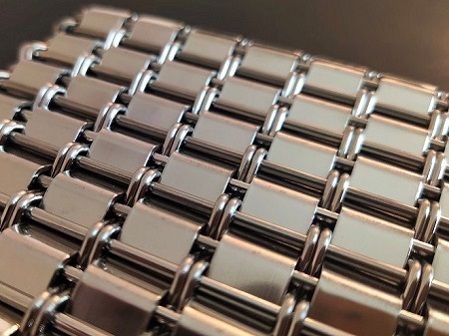

METART WW37 has two different types of warp wires, a group of double pre-crimped wires plus a big flat stainless steel strip. This wire mesh pattern is also a good material for elevator wall cladding.

Please refer to the following specifications.

Material	Stainless Steel 304 or 316, optional
Type	Rigid mesh
Weft Wire Rod Diameter	1.95mm
Crimped Warp Wire Diameter	1.5mm
Crimped Warp Strips	10x1mm
Clear Hole Size	0mm
The total thickness of the fabric	4.5mm
Opening Area	0%
Block out	100%
Privacy Rate	100%
Weight	11.3kg/Square Meter
Finish	Stainless Steel Mill Finish
The way of cutting	Straight Cut
All optional ways of cut	Straight Cut
All optional Finish	Mill Finish ( Original stainless steel bright finish）, Antique Bronze plating, Antique Copper plating, Antique brass plate, vacuum titanium plated
Customized specifications and Mini order accepted.
Note: All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication
