METART-WW28SSRB-Cladding Decorative Mesh
Material: Stainless Steel 304 or SS316 + Real Brass Wire
Type: Rigid Cladding Wire Mesh
Opening Area: 47%
Weight: Approx 6.8kg/Square Meter
Finish: Mill Finish
Screen Width: Customized.
Screen Length: Customized.

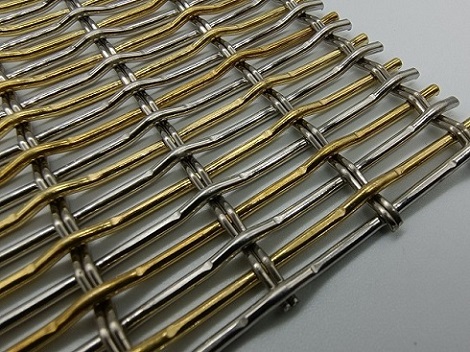

GET A QUOTEMETART WW28SSRB is a double warp slot hole architectural wire mesh. Adopting two of 1.15mm stainless steel wire as warp, and 1.95mm real brass wire and stainless wire as weft, which make it more decorative for architectural purpose.
Please refer to the following specifications.
Material |
Stainless Steel 304 or 316 + Real Brass Wire |
Type |
Rigid mesh |
Double Warp Wire Diameter |
1.15mm x 2 pieces |
Weft Wire Diameter |
1.95mm |
Clear Hole Size |
2.3x15.3mm |
Wire Pitch |
4.2 x 18mm |
The total thickness of the fabric |
3.6mm |
Opening Area |
47% |
Block out |
53% |
Privacy Rate |
53% |
Weight |
6.8kg/Square Meter |
Finish |
Mill Finish |
The way of cutting |
Straight Cut |
All optional ways of cut |
Straight Cut Only |
All optional Finish |
Mill Finish, |
Customized specifications and Mini order accepted. |
|
Note: All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication |
