METART-WW04-Lift Cladding Metal Mesh

Specification

Material: Stainless Steel 304 / Stainless Steel 316 / SS201

Type: Rigid Wall Cladding Wire Mesh

Opening Area: 0%

Weight: Approx 12.6kg/Square Meter

Finish: Mill Finish

Screen Width: 2000MM

Screen Length: 3000MM

GET A QUOTE

Introduction

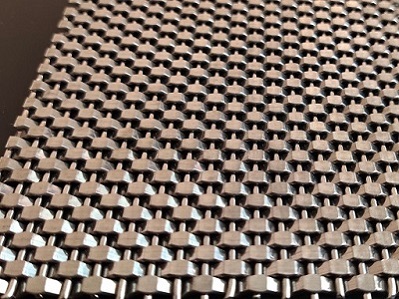

METART-WW04 is a combination of stainless steel wire rods and flattened wire strips. With no opening, the pattern is as solid as a steel sheet. This mesh pattern is suitable for architectural cladding, or lift cabin renovations, or security covering mesh.
This is a mill finish pattern. The mesh will look much better after surface treatments, like brass plating, copper plating, antique brass plating, antique copper plating, antique bronze plating, or titanium plating.
Please refer to the following specifications.

Material	AISI Stainless Steel 201, 304 or 316
Type：	Rigid mesh
Flat SS Wire Strip ( Width x Thickness)	3x1.5mm
Wire Rod	1.45mm
Wire Rod Pitch	5mm
Clear Hole Size	0mm
The total thickness of the fabric	3mm
Opening Area	0%
Block out	100%
Privacy Rate	100%
Weight:	12.6kg/Square Meter
Finish	Mill Finish ( Original stainless steel bright finish)
All optional ways of cut	Straight Cut only
All optional Finish	Mill Finish ( Original stainless steel bright finish）, Antique Bronze plated, Antique copper plated, Antique brass plated, Vacuum Titanium Plated-Golden， Titanium Plated Black, Titanium Plated Rose Gold, Painted
Customized specifications and Mini order accepted.
Note: All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication.
