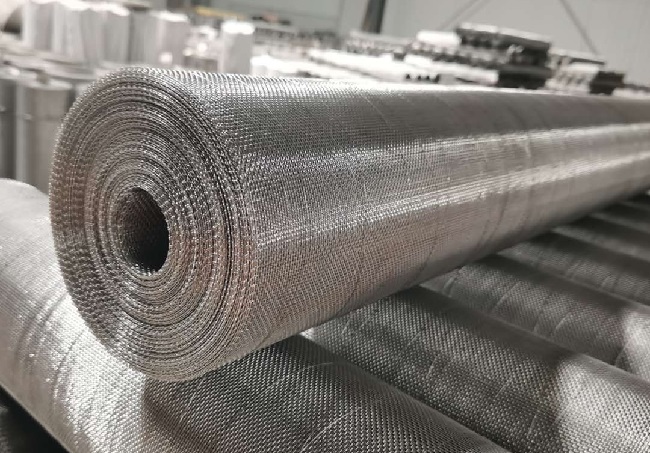

Kanthal Alloy Wire Mesh-Fecral Mesh

Specification

Material: Kanthal Alloy Wires - Fecral wires

Type: Industrial Special Alloy Wire Mesh

Weave Pattern: Plain Weave, Twill Weave, Dutch Weave, Crimped Weave, etc.

Mesh Count: Custom made.

Wire Diameter: Custom made.

Width: Custom made

Length: 30M and other custom length.

GET A QUOTE

Introduction

Fe-Cr-Al alloy wire mesh, also known as Fecral Wire Mesh or its brand name Kanthal Alloy wire mesh, is made of iron chromium aluminum-based alloys containing small amounts of reactive elements such as yttrium and zirconium.
With the high aluminum and chromium content, Fecral wire mesh can service temperature reaching to 1425ºC (2600ºF).
According to the different combination, you will have difference choices including 1Cr13Al4 wire mesh, 0Cr25Al5 wire mesh, 0Cr21Al6 wire mesh, 0Cr23Al5 wire mesh, 0Cr21Al4 wire mesh, 0Cr21Al6Nb wire mesh and 0Cr27Al7Mo2 wire mesh.

Physical Properties of Fecral Alloy wire mesh.

Brand name		1Cr13Al4	0Cr25Al5	0Cr21Al6	0Cr23Al5	0Cr21Al4	0Cr21Al6Nb	0Cr27Al7Mo2
Main chemical composition%	Cr	12.0-15.0	23.0-26.0	19.0-22.0	22.5-24.5	18.0-21.0	21.0-23.0	26.5-27.8
	Al	4.0-6.0	4.5-6.5	5.0-7.0	4.2-5.0	3.0-4.2	5.0-7.0	6.0-7.0
	RE	opportune amount	opportune amount	opportune amount	opportune amount	opportune amount	opportune amount	opportune amount
	Fe	Rest	Rest	Rest	Rest	Rest	Rest	Rest
							Nb0.5	Mo1.8-2.2
Max.continuous service temp.of element (ºC)		950	1250	1250	1250	1100	1350	1400
Resistivity μΩ.m,20ºC		1.25	1.42	1.42	1.35	1.23	1.45	1.53
Density (g/cm3 )		7.4	7.10	7.16	7.25	7.35	7.10	7.10
Thermal conductivity KJ/m.h.ºC		52.7	46.1	63.2	60.2	46.9	46.1	45.2
Coefficient of lines expansion α×10-6/ºC		15.4	16.0	14.7	15.0	13.5	16.0	16.0
Melting pointºC		1450	1500	1500	1500	1500	1510	1520
Tensile strength Mpa		580-680	630-780	630-780	630-780	600-700	650-800	680-830
Elongation at rupture %		>16	>12	>12	>12	>12	>12	>10
Variation of area %		65-75	60-75	65-75	65-75	65-75	65-75	65-75
Repeat bending frequency(F/R)		>5	>5	>5	>5	>5	>5	>5
Hardness(H.B.)		200-260	200-260	200-260	200-260	200-260	200-260	200-260
Micrographic structure		Ferrite	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite
Magnetic properties		Magnetic	Magnetic	Magnetic	Magnetic	Magnetic	Magnetic	Magnetic

Specification List:

Mesh Count /Inch	Wire Diameter		Aperture		Open Area %	Weight (LB) /100 Square Foot
Mesh Count /Inch	Inch	MM	Inch	MM	Open Area %	Weight (LB) /100 Square Foot
1 × 1	.080	2.03	.920	23.37	84.6	41.1
2 × 2	.063	1.60	.437	11.10	76.4	51.2
3 × 3	.054	1.37	.279	7.09	70.1	56.7
4 × 4	.063	1.60	.187	4.75	56.0	104.8
4 × 4	.047	1.19	.203	5.16	65.9	57.6
5 × 5	.041	1.04	.159	4.04	63.2	54.9
6 × 6	.035	.89	.132	3.35	62.7	48.1
8 × 8	.028	.71	.097	2.46	60.2	41.1
10 × 10	.025	.64	.075	1.91	56.3	41.2
10 × 10	.020	.51	.080	2.03	64.0	26.1
12 × 12	.023	.584	.060	1.52	51.8	42.2
12 × 12	.020	.508	.063	1.60	57.2	31.6
14 × 14	.023	.584	.048	1.22	45.2	49.8
14 × 14	.020	.508	.051	1.30	51.0	37.2
16 × 16	.018	.457	.0445	1.13	50.7	34.5
18 × 18	.017	.432	.0386	.98	48.3	34.8
20 × 20	.020	.508	.0300	.76	36.0	55.2
20 × 20	.016	.406	.0340	.86	46.2	34.4
24 × 24	.014	.356	.0277	.70	44.2	31.8
30 × 30	.013	.330	.0203	.52	37.1	34.8
30 × 30	.012	.305	.0213	.54	40.8	29.4
30 × 30	.009	.229	.0243	.62	53.1	16.1
35 × 35	.011	.279	.0176	.45	37.9	29.0
40 × 40	.010	.254	.0150	.38	36.0	27.6
50 × 50	.009	.229	.0110	.28	30.3	28.4
50 × 50	.008	.203	.0120	.31	36.0	22.1
60 × 60	.0075	.191	.0092	.23	30.5	23.7
60 × 60	.007	.178	.0097	.25	33.9	20.4
70 × 70	.0065	.165	.0078	.20	29.8	20.8
80 × 80	.0065	.165	.0060	.15	23.0	23.2
80 × 80	.0055	.140	.0070	.18	31.4	16.9
80 × 80	.0047	.119	.0078	.198	39	11.39
90 × 90	.005	.127	.0061	.16	30.1	15.8
100 × 100	.0045	.114	.0055	.14	30.3	14.2
100 × 100	.004	.102	.0060	.15	36.0	11.0
100 × 100	.0035	.089	.0065	.17	42.3	8.3

Mesh Count/ Inch	Wire Diameter				Type of Weave
	Warp wire dia.		Weft wire dia.
	inch	mm	inch	mm
12x64	0.023	0.58	0.0165	0.42	Plain
14x88	0.019	0.48	0.012	0.30	Plain
14x110	0.016	0.40	0.011	0.28	Plain
24x110	0.014	0.355	0.010	0.25	Plain

Application

-Industrial furnace,
-Heating appliance
-Electrical resistors.
-Medical, chemical, ceramics, electronic, and other civil or industrial fields.
